Description

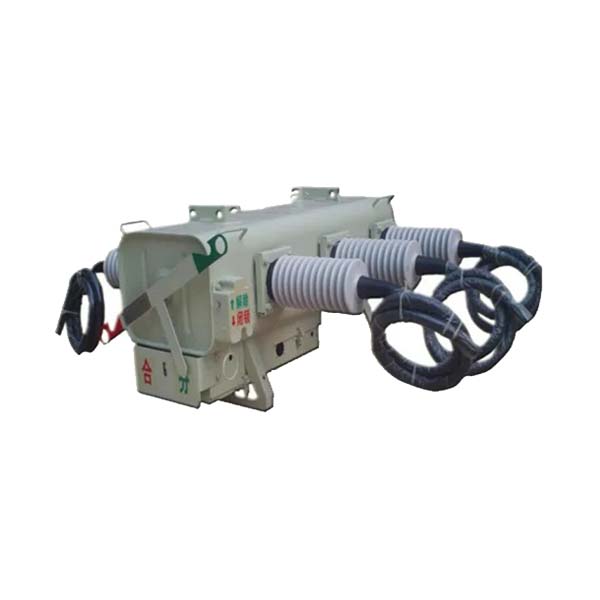

RTS type Outdoor on load break switch (switch disconnector) are destined to switch stub lines and ring main lines or transformers( It can be equipped with MV HRC fuse links as short circuit protection function) or for switching under on load conditions.

--------------------------------------

RTS type pole mounted on load break switch is adopt a air pressure extinguish technology, which is old design technology,It is widely used in non-extreme big fault network or not important area. like rural grid,etc..

--------------------------------------

RTS type pole mounted load break switch is a less electrical life switch, It can not be used for frequent operation area. (if you need frequent operation LBS pls choose RLW type VLBS) .

--------------------------------------

RTS type switch comply with IEC/IEEE and DVE-recommendation standards.

Especially comply with DIN VDE 0670 part 3 and IEC publication IEC-60265, IEC62271-103.

--------------------------------------

More information pls contact with us!

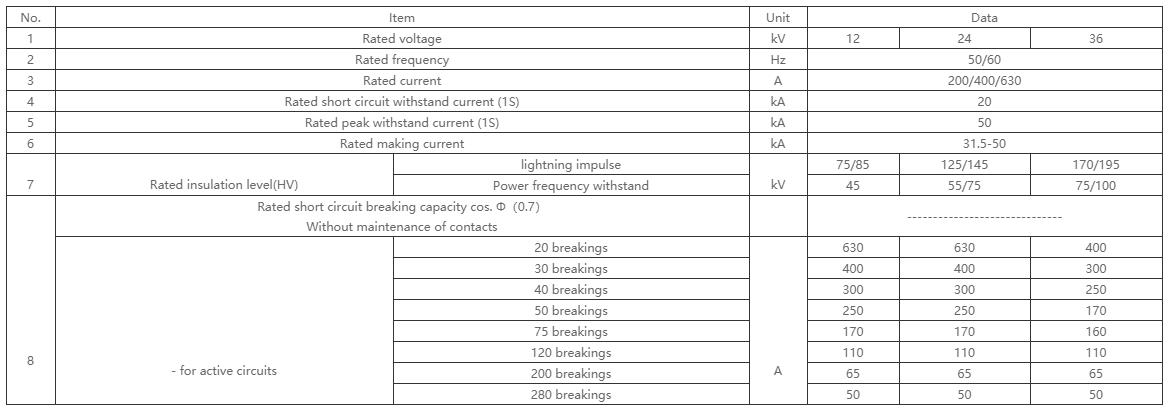

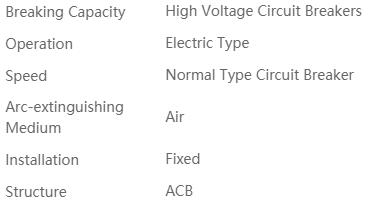

Technical data

Features

++++Service environment
a) Air temperature: Maximum temperature: +75℃; Minimum temperature:-45℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

e) No frequent violent shake

Features and benefits
• Compact design
• All steel parts either in stainless steel or hot-dip galvanized
• Solid and stable base frame
• Main contact with icing protection
• Insulators available in porcelain or alternatively in silicone
• Minimal sag for the line-connection thanks to the two fixed terminals
• Completely maintenance antirust AL alloy -Arc chamber
• Switching-off procedure without external arc
• Short circuit making capacity under specific conditions possible
• Fixing on the supporting structure either by clamping (free setting) or screwing (holes in the base frame)
• Easy on-site installation and setting
• High reliability: up to 1’000 cycles (depending on the making current)
• All conducting parts either silver, nickel or tin-plated
• Practically maintenance-free

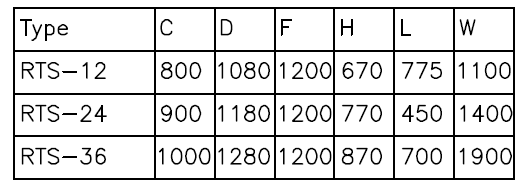

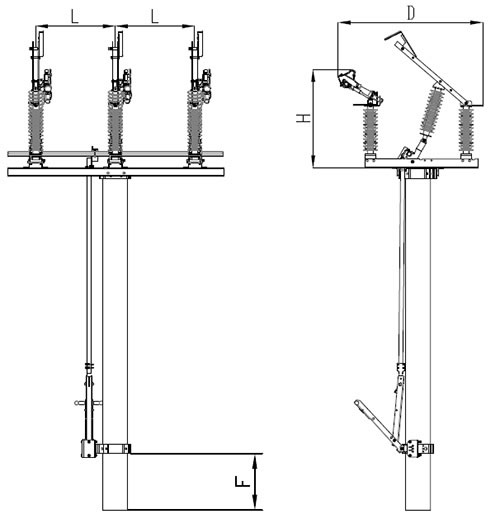

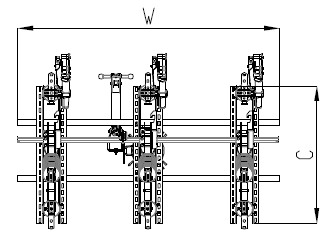

Drawing and dimension
