Description

What is the standard of Weiguan Auto Recloser？

Weiguan Electric Co., Ltd. Auto Recloser is a flexible pole mounted outdoor vacuum switching device that can trip and reclose up for a temporary distribution line fault. It reduces the blackout time greatly and improves the stability of power grid operation. The operation status also can be controlled and monitored by mobile phone and SCADA system.

Weiguan Electric Co., Ltd. standard auto recloser is fully meet the Standard IEC62271-111 & ANSI/IEEE C37.60. Fully follow the above standard for type test and routine test. Additional functions reuirement is offered, like: ESKOM standard, TANESCO standard, BPC standard, SEC standard, DEC, Meralco, KPLC, BREB, etc. Besides, Weiguan Electric Co., Ltd. even provide with patent design for new recloser.

RCW+ Auto Recloser

RCW+ type auto recloser is ANSI/IEC standardized plus design products which is equipped with one magnetic actuator mechanism, one manual closing/opening/Locking device, 3 current sensors, max 6 voltage sensors, with more functional like protection curves + curves programble, coodination logics + logics  programble,  programble communication protocols(Modbus, DNP3.0, IEC 60870-5-101/104), PC software, APP control tool, etc.

RCW+ type auto circuit recloser is a solid insulation reclosure with zero pressure Sf6 GAS sealed. with high creepage design, higher insulation level,  suit using for Maximum 42kV level sytem.

It's vacuum interrupting technology, and IP67 IP protection class, It avoid any bad influence high polution enviroment of humidity, salt or alkali incursion or small animal,etc...

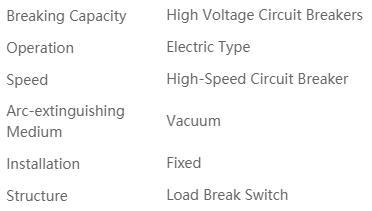

Specification of Auto recloser

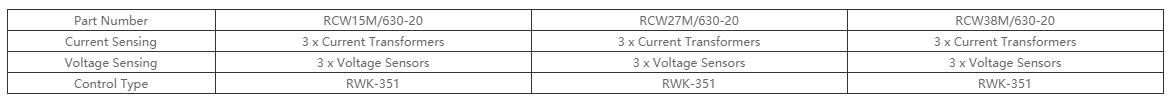

● Main technical data of auto recloser

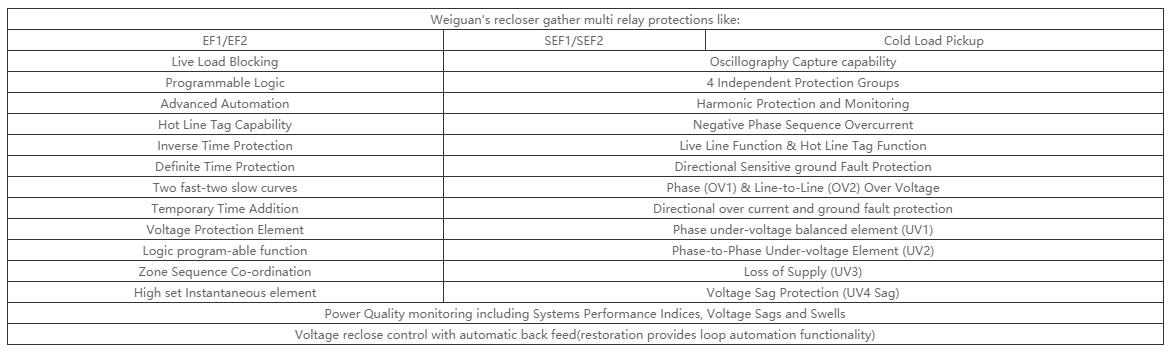

Function of auto recloser

If you want more functions, pls consult with us！

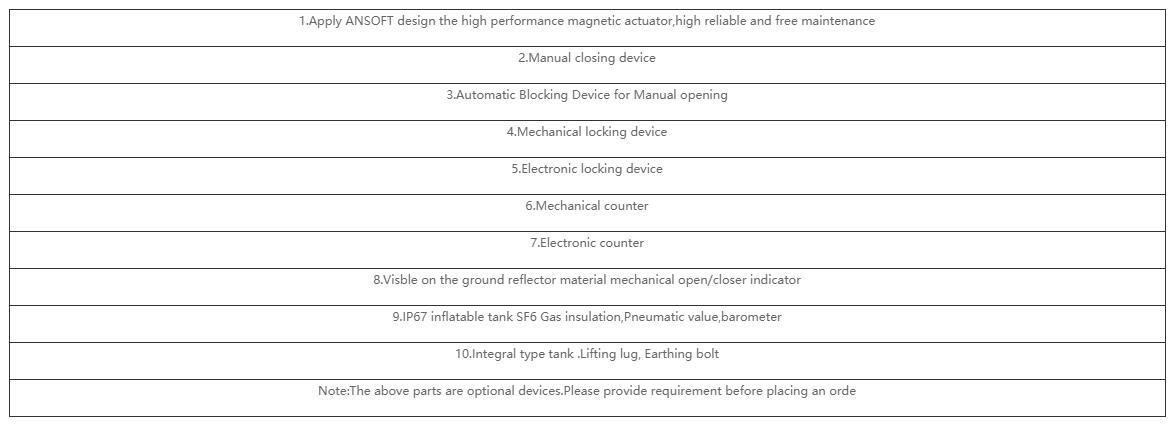

Feature of auto recloser

● Service environment

Air temperature: Maximum temperature: +85℃; Minimum temperature:-45℃

Humidity: Monthly average humidity 95%; Daily average humidity 90% .

Altitude above sea level: Maximum installation altitude: 2500m or more higher.

Ambient air not apparently polluted by corrosive and flammable gas, vapor etc. No frequent violent shake

●Offering With optional classes for rated current range:

--Type RCW12, Rating 6-12 kV with 630A, 16 kA up to 1250A, 20kA;

--Type RCW15, Rating15-20 kV with 630A, 16 kA up to 1250A, 20kA;

--Type RCW27, Rating22-27 kV with 630A, 16 kA up to 1250A, 20kA;

--Type RCW38, Rating30-40.5 kV with 630A, 16 kA up to 800A, 20kA;

With optional classes for different grid application installation: Single phase & Three phase.

With optional relay protection& logics for user choice:

+Instantaneous over-current protection.

+Timing over-current protection

+Negative sequence over-current protection.

+Directional over-current protection(*).

+Over-voltage protection./Under voltage protection.

+Programable protection relay curves total 10 nos ANSI/IEC curves.

+Cold load pickup protection TCC +Hot line tag

+Earth protection EF/SEF +Zone Sequence Co-ordination

+More relay functions can be customized.

With optional communication protocols & I/O port for user choice:

RS-232 and RS-485 ports supporting.

DNP3.0 communication protocol support(*).

Modbus communication protocol is optional(*).

IEC 60870-5-101 communication protocol support.

IEC 60870-5-104 communication protocol support.(*).

IEC 61850 communication protocol support.(*).

The recloser can communicate through GPRS(Or GSM) modem with English or Specified language (*).

With optional functions for user.

Rated currents, System phase current.

Rated voltages, System phase voltage& secondary low voltage power supply voltage. Frequency, power(kWh),

reactive power(kV arh), power factor .

With optional reclosing interval for user pre-program:

Reclosing times setting support.

Dead time setting support.

With events recording function:

SOE 10000 operations record.

Fault record and normal operation record.

Note: (*) mean should customized by manufacturer if needed.

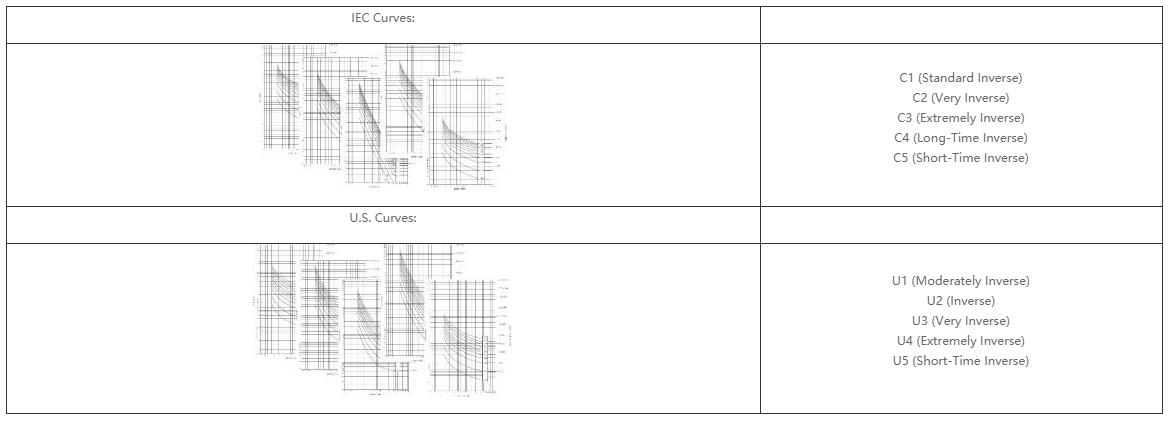

●Time-Overcurrent Curves The following information describes the curve timing for the curve and time dial settings made for the time-overcurrent

elements The time-overcurrent relay curves in conform to IEEE C37.112-1996 IEEE Standard Inverse-Time

Characteristic Equations for Overcurrent Relays.

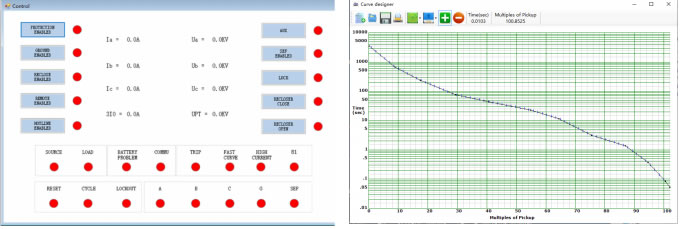

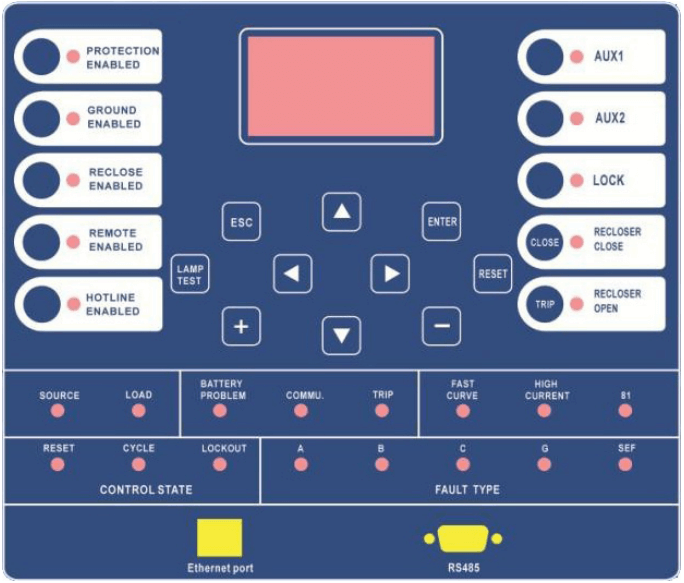

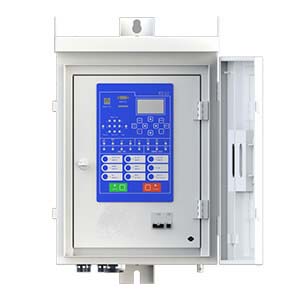

● PC software for controller Testing, Setting, programing, Update.

Human friendship interface                                               Programmable Time-Overcurrent curve

● Recloser feature a)Outline of recloser:

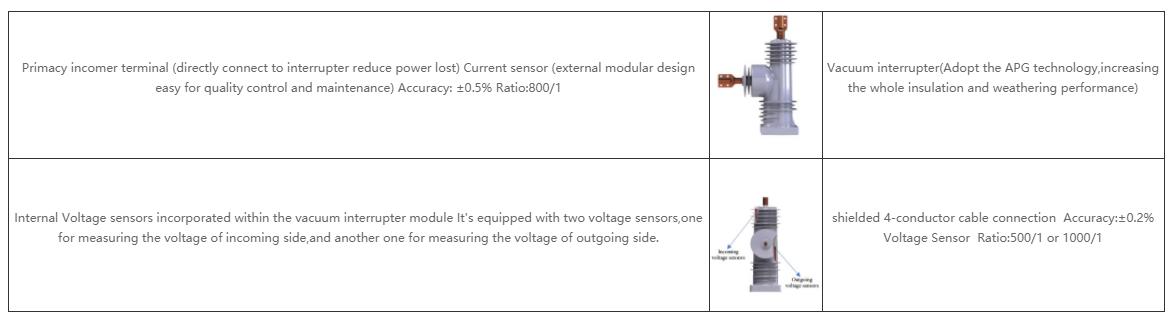

The RCW series vacuum recloser is mainly combined with integration terminal, current transformer, permanent magnetic actuator and it’s recloser controller.

b)The recloser tank feature:

The Vacuum recloser tanks are manufactured from 304# grade stainless steel and are powder coated a light grey colour. Whole recloser IP67 protection class, equipped with a auxiliary plug to connect with recloser controller by control cable, Diameter Max22mm, 6 M length (8M for special).

It’s can performance serve more than 20 years long term under heavy duty circumstance.

● Main new advantages of RCW

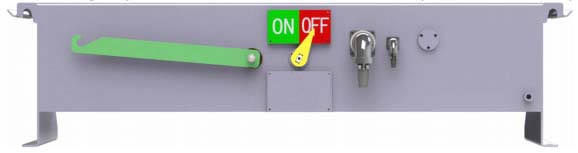

Visible ON/OFF indicatorIP67 class waterproof plug connector

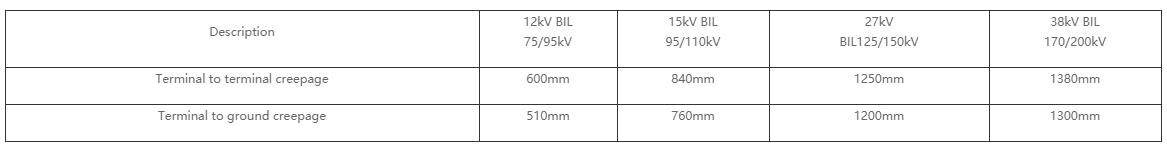

● Creepage Distances of RCW

●Accessories of RCW

All above insulating components for BIL 200kV expanding using. Any question please contact with our engineer.

Upper voltage shield 3 pcs/set

Standard made of T2 copper material, for 630/1250A rated current using. With  expanding range.

Terminal 6 pcs/set

Mobile APP of auto recloser

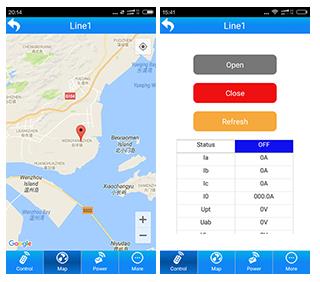

Map guide&location Monitoring&Controlling

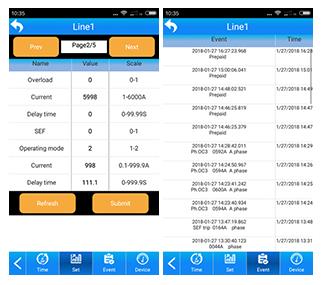

Setting & Modification Event Records

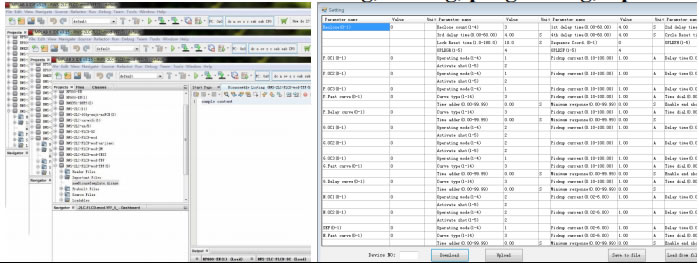

●Master software for Distribution Automation Management

How to quick operate auto recloser

The Sternest Warning Before You Operate Recloser!

Make Sure That:

1. Please make sure the battery is ready full charged (12 hours) before operating recloser controller!

2. It is not allowed to use emergency opening and closing handle at normal condition!

3. It is not allowed to repeat press the Open/Close button continuously without intermission!

Further Warning!

Special attention should be paid to the following points, which may cause the recloser to fail to work.

1.About Controller parameter setting

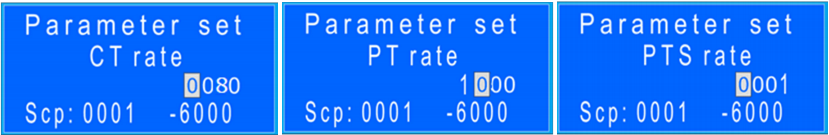

▲Do not modify CT rate, PT rate, PTS rate in controller!

▲Do not modify recloser sequence, it is O-0.5s-CO-2s-CO-5s-CO in IEC standard.

2.About OPEN/CLOSE operation

▲It’s not allow to repeat press the Open/Close button continuously without intermission.

▲Please contact us in time, frequent operation will burn the controller components

3.About manual closing device (Yellow handle)

▲It is not allowed to do manual closing operation if not necessary emergency demand.

▲Make sure the recloser is at OFF position and controller can’t drive it into close situation

▲After closing successfully, continue to pull down for 3 times to release the lockout.

▲It is only allowed to be used in special non-electric operation situation.

The above three points are special remarks, do observe strictly.

Please do not hesitate to contact me if any queries.

Field service operation and warranty issues:

Weiguan Electric Co., Ltd.® can provide competent, well trained field service representatives to provide technical guidance and advisory assistance for the installation, overhaul, repair and maintenance of Weiguan Electric Co., Ltd.® equipment, processes and systems.
