Description

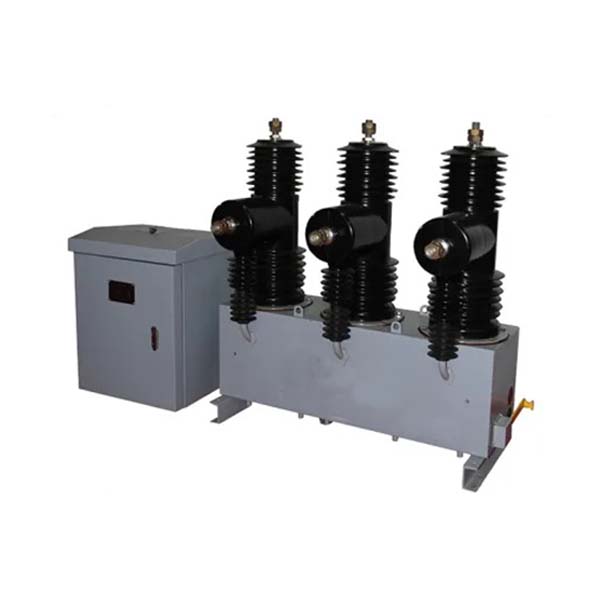

The AB-3S-40.5 series circuit reclosers are recently-developed pole-mounted intelligent vacuum circuit reclosers of a new generation, which absorb the advanced domestic and foreign technologies adopted by our company. It is intelligent, energy-saving, environemntally-friendly and maintenance-free.

This product integrates such functions as control, protection, measurement, fault positioning, online monitoring and synchronous closing. With full functions and high digitalized and intelligent degree, it is a best choice for power distribution equipment network automation and intellectualization process.

This product conforms to IEC60044-1, IEC60060, IEC60068-2, IEC60099-4, IEC60255-27, IEC60270, IEC60280.1, IEC60529, IEC60694, IEC60815-1, IEC60870-5-101, IEC61000-4, IEC61243-5, IEC62271, standards, etc.

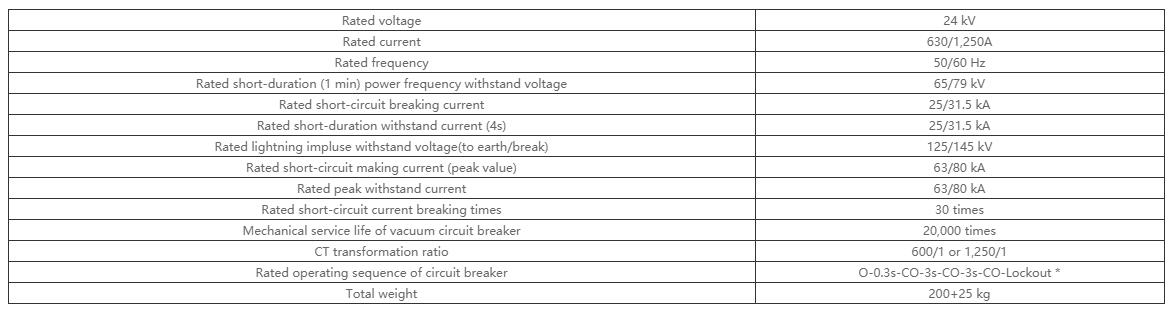

Major Technical Parameters are shown below:

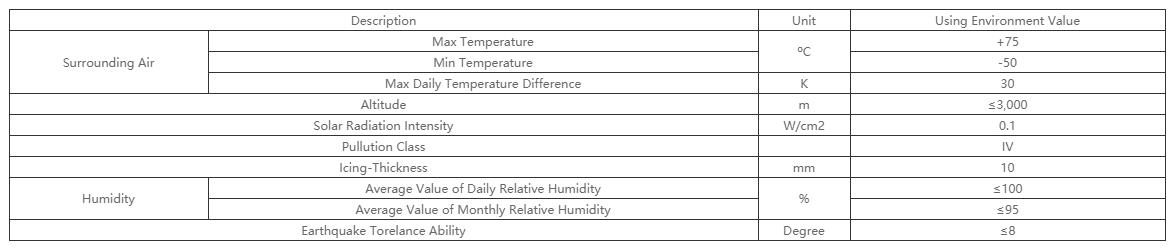

Using Environment:
