General

Weiguan Electric Co., Ltd. strives to bring our customers the latest technology and competitive pricing and best service for distribution automatic.

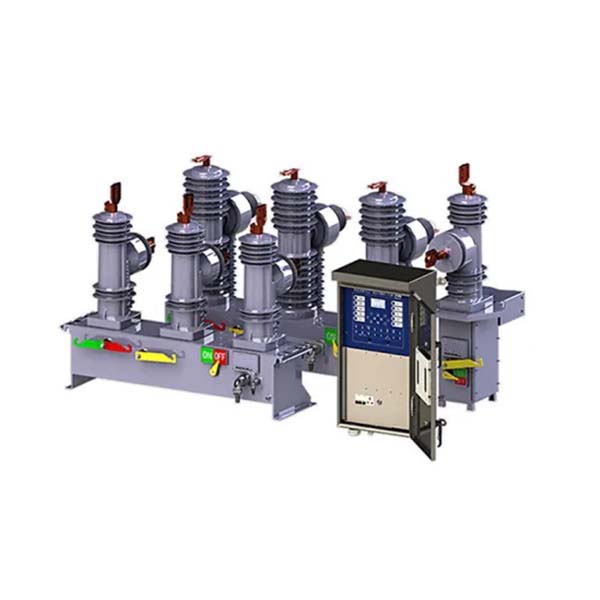

The RCW series automatic circuit reclosers can use on overhead distribution lines as well as distribution substation applications for all voltage classes 11kV up to 38kV at 50/60HZ power system. and its rated current can reach 1250A.

The RCW series automatic circuit reclosers integrates the functions of control, protection, measurement, communication, fault detection, on-line monitoring of closing or opening.

Service environment

  a) Air temperature: Maximum temperature: +85ºC; Minimum temperature:-45ºC
 b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
 c) Altitude above sea level: Maximum installation altitude:2500mor more higher.
 d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
 e) No frequent violent shake

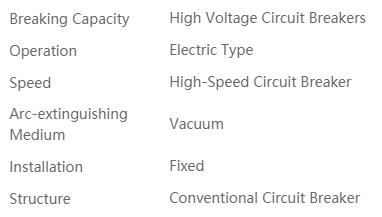

Main technical data
