24kV Auto Recloser

24kV Auto Recloser

Product Description


24kV Auto Recloser is a outdoor distribution equipment with AC 50HZ,rated voltage 12KV and three-phase ac. It is mainly used for open circuit power distribution network and close the load current, overload current, short circuit current in power system.It is suitable for the transformer substation and factory power distribution system for protection and control use. Especially suitable for urban power grid and rural power grids.

Service Condition

  1. Ambient Temperature: -40ºC~+65ºC,daily temperature≤25ºC;

   2. Altitude: ≤2000m

   3. Wind speed: ≤35m/s

   4. Earthquake intensity: ≤8

   5. Anti-fouling property: IV level

   6. Installation site: Not putting inflammable, explosive, chemical corrosion.

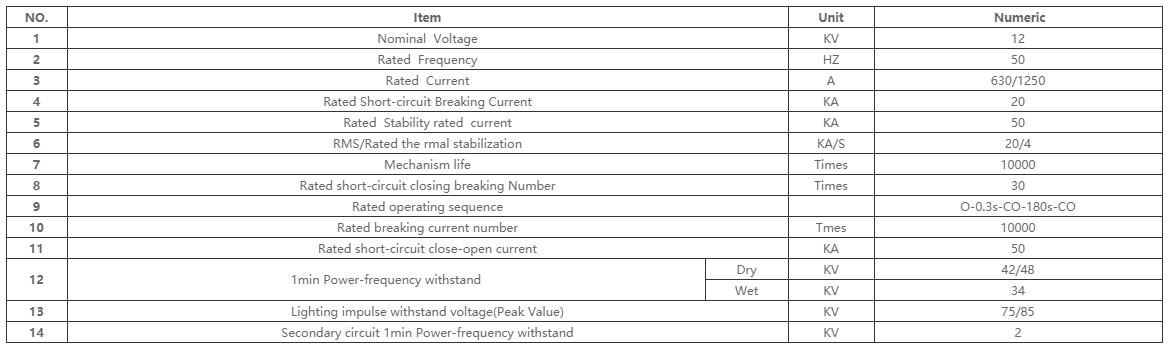

Technical Parameters
