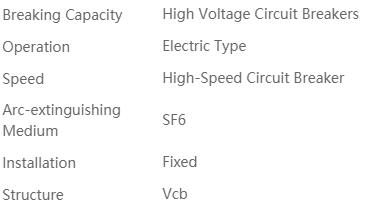

Description

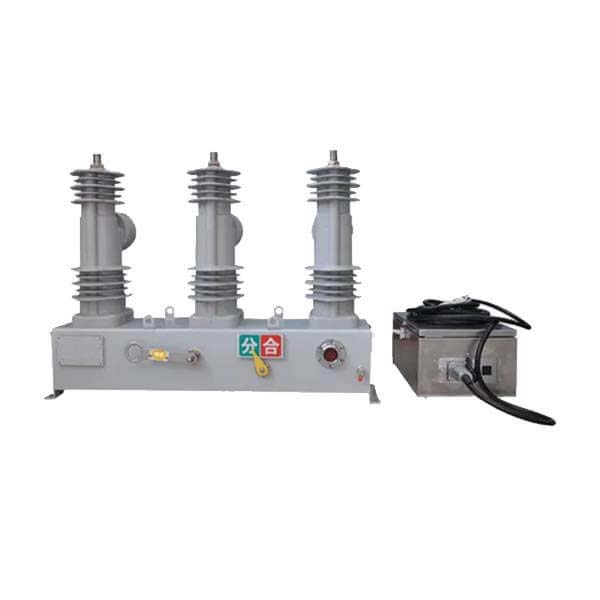

Rcw+ type 38kV auto circuit recloser is designed for using voltage rating up to maximum 42kV level system. In order to provide with a high reliable equipments, Rockwill's team increased the whole design schemas as below.
---------------------------------------------------

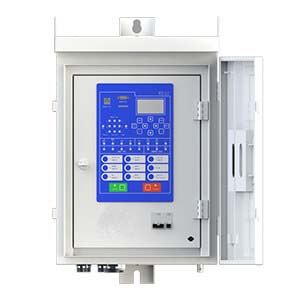

Rcw+ type 38kV auto circuit recloser is ANSI/IEC standardized plus design products which is equipped with one magnetic actuator mechanism, one manual device for closing, opening and locking, 3 current sensors, max 6 voltage sensors, with more functional like protection curves + curves programble, coodination logics + logics programble, programble communication protocols, PC software, APP control tool, etc... with RWK352 controller,....
---------------------------------------------------
Rcw+ type 38kV auto circuit recloser is a solid insulation reclosure with zero pressure Sf6 GAS sealed. with high creepage design, higher insulation level, suit using for Maximum 42kV level sytem. It's vacuum interrupting technology, and IP67 IP protection class, It avoid any bad influence high polution enviroment of humidity, salt or alkali incursion or small animal,etc...
---------------------------------------------------
Rcw+ type 38kV auto circuit recloser is proper for using in either important area or extreme bad envirment area which normal ACR is not capable well service!
Feature of 38kV auto circuit recloser
● Service environment
Air temperature: Maximum temperature: +85℃; Minimum temperature:-45℃
Humidity: Monthly average humidity 95%; Daily average humidity 90% .
Altitude above sea level: Maximum installation altitude: 2500m or more higher.
Ambient air not apparently polluted by corrosive and flammable gas, vapor etc. No frequent violent shake
●Offering With optional classes for rated current range:
--Type RCW38, Rating30-40.5 kV with 630A, 16 kA up to 800A, 20kA;
With optional classes for different grid application installation: Single phase & Three phase.
With optional relay protection& logics for user choice:
+Instantaneous over-current protection.
+Timing over-current protection
+Negative sequence over-current protection.
+Directional over-current protection(*).
+Over-voltage protection./Under voltage protection.
+Programable protection relay curves total 10 nos ANSI/IEC curves.
+Cold load pickup protection TCC +Hot line tag
+Earth protection EF/SEF +Zone Sequence Co-ordination
+More relay functions can be customized.
With optional communication protocols & I/O port for user choice:
RS-232 and RS-485 ports supporting.
DNP3.0 communication protocol support(*).
Modbus communication protocol is optional(*).
IEC 60870-5-101 communication protocol support.
IEC 60870-5-104 communication protocol support.(*).
IEC 61850 communication protocol support.(*).
The recloser can communicate through GPRS(Or GSM) modem with English or Specified language (*).
With optional functions for user.
Rated currents, System phase current.
Rated voltages, System phase voltage& secondary low voltage power supply voltage. Frequency, power(kWh),
reactive power(kV arh), power factor .
With optional reclosing interval for user pre-program:
Reclosing times setting support.
Dead time setting support.
With events recording function:
SOE 10000 operations record.
Fault record and normal operation record.
Note: (*) mean should customized by manufacturer if needed.

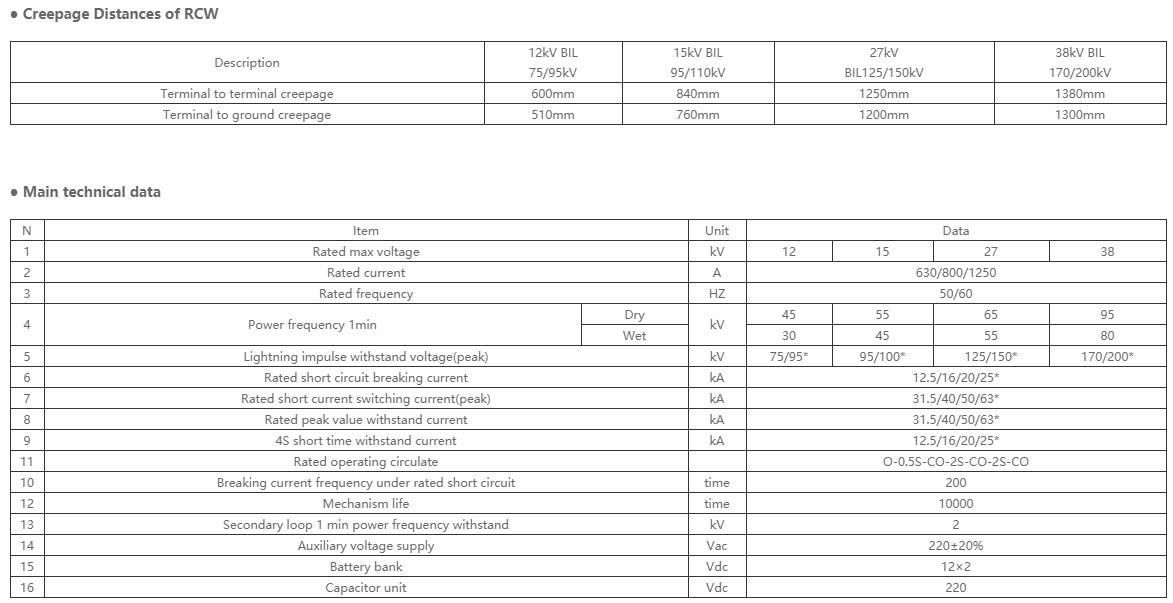

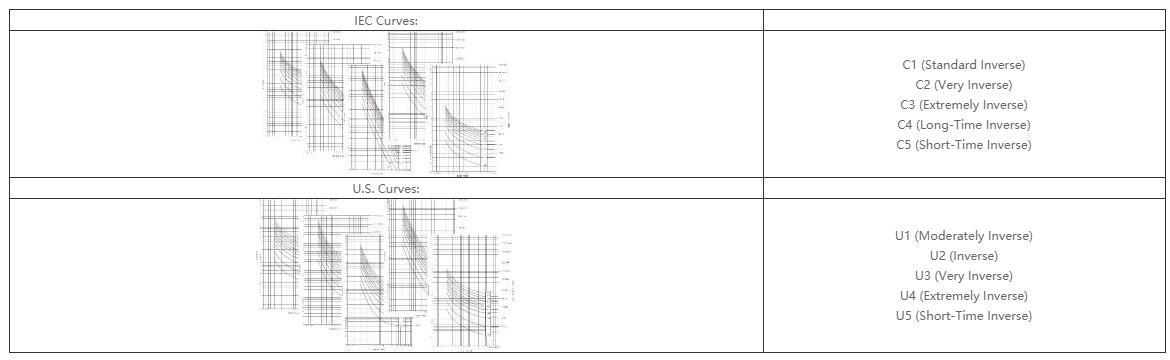

●Time-Overcurrent Curves The following information describes the curve timing for the curve and time dial settings made for the time-overcurrent
elements The time-overcurrent relay curves in conform to IEEE C37.112-1996 IEEE Standard Inverse-Time
Characteristic Equations for Overcurrent Relays.

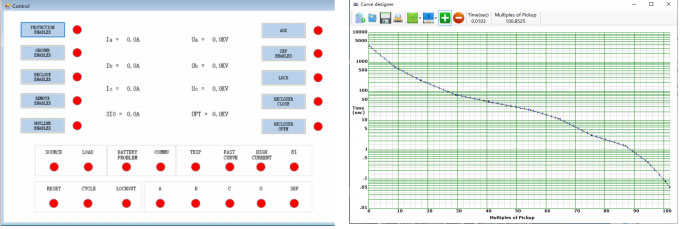

● PC software for controller Testing, Setting, programing, Update.
Human friendship interface Programmable Time-Overcurrent curve

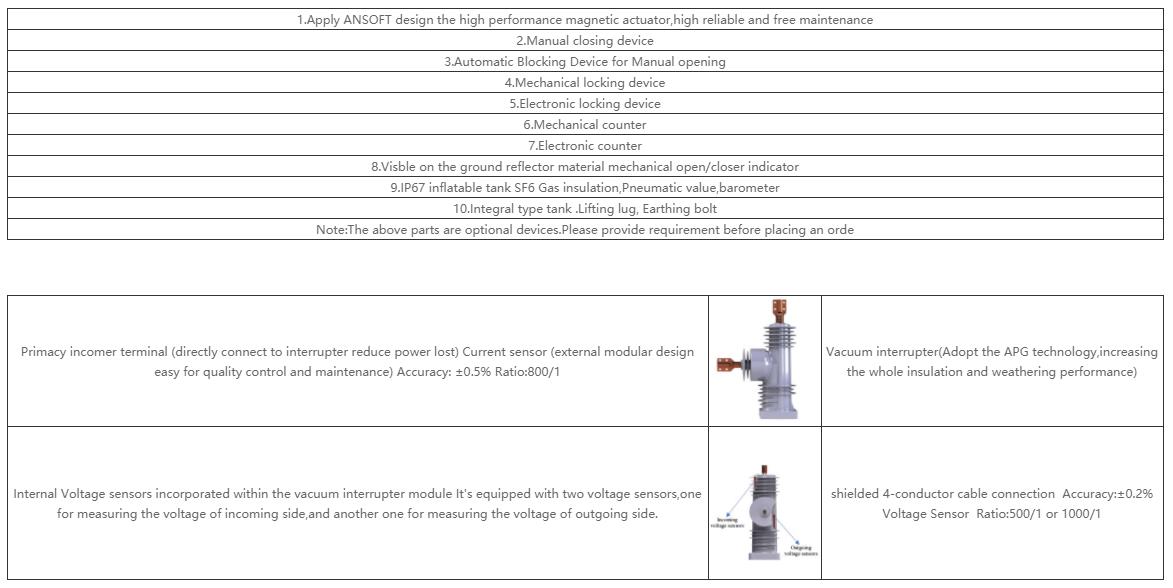

● Recloser feature a)Outline of recloser:
The RCW series vacuum recloser is mainly combined with integration terminal, current transformer, permanent magnetic actuator and it’s recloser controller.
b)The recloser tank feature:
The Vacuum recloser tanks are manufactured from 304# grade stainless steel and are powder coated a light grey colour. Whole recloser IP67 protection class, equipped with a auxiliary plug to connect with recloser controller by control cable, Diameter Max22mm, 6 M length (8M for special).
It’s can performance serve more than 20 years long term under heavy duty circumstance.
● Main new advantages of RCW

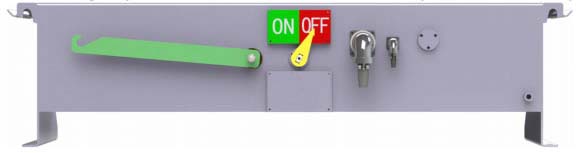

Visible ON/OFF indicatorIP67 class waterproof plug connector
●Accessories of RCW
All above insulating components for BIL 200kV expanding using. Any question please contact with our engineer.
Upper voltage shield 3 pcs/set
Standard made of T2 copper material, for 630/1250A rated current using. With expanding range.
Terminal 6 pcs/set
Mobile APP software of 15kV auto recloser

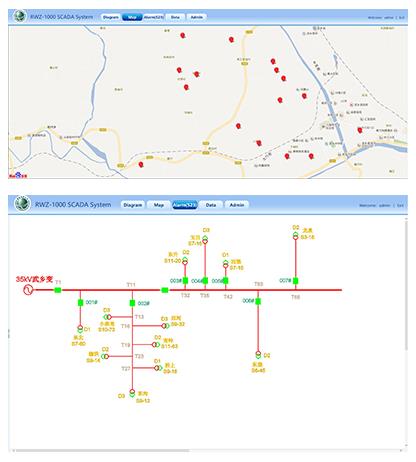

●Master software for Distribution Automation Management
