Description

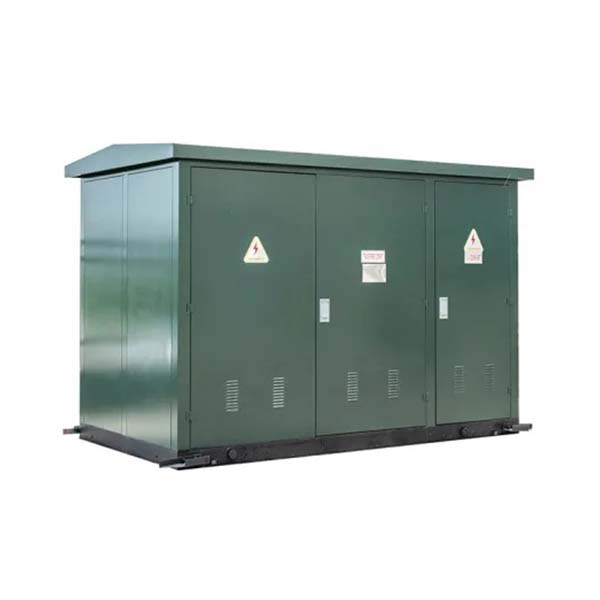

15kV Compact substation

- YB() series products is a kind of set of equipment which assembles the MV switch apparatus, transformer, LV distribution equipment together according to fixedconnection scheme.

This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.

Service environment
a) Air temperature: Maximum temperature: +50℃; Minimum temperature:-55℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake

Main Designation Characteristics

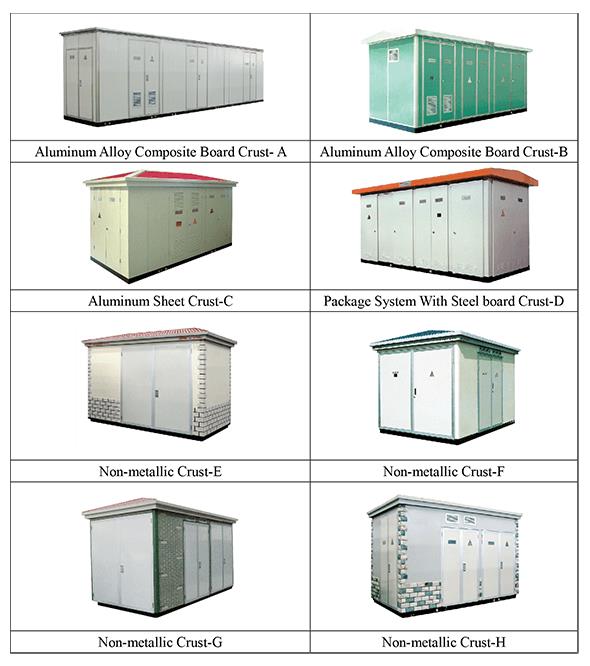

The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).
The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.
The proof of the box is double layers structure and between the layers is filled with foam.There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.
Note: we offer special customized products according to client’s requirement.

---------------------------------------

What we are manufacturing?

Miniature substation, CCS substation, Compact Substation,Unitised Substation,Package Substation,Koisk substation.
All CSS can be equiped with Oil Type & Dry Type Transformer.
HV Voltage Ratings are 2.4kV,3.3kV,6kV,6.3kV,10kV,11kV,13.2kV,13.8kV,14.4kV,15kV,20kV,22kV,23kV,30kV,33kV,34.5kV,35kV

Capacity rating are 100kVA,125kVA,160kVA,200kVA,250kVA,315kVA,400kVA,500kVA,630kVA,750kVA,800kVA,

1000kVA,1250kVA,1600kVA,2000kVA

2500kVA,3150kVA,4000kVA,5000kVA

---------------------------------------

How many countries CCS made by Weiguan Electric Co., Ltd. is running ?

CCS substation runs in:

Africa: such as Nigeria,TOGO,Uganda,Zambia,Tanzania,Ethiopia,Mozambique,DRC congo,Congo,Cameroon,Cote d'Ivoire,Algeria,Angola,South Africa,Kenya,etc....

Asia and America countries: China,Indonesia,Cambodia,Vietnam,USA,Philipines,Bangladesh,Pakistan,Mongolia,Iraq,Yemen,etc....

15kV compact substation specification

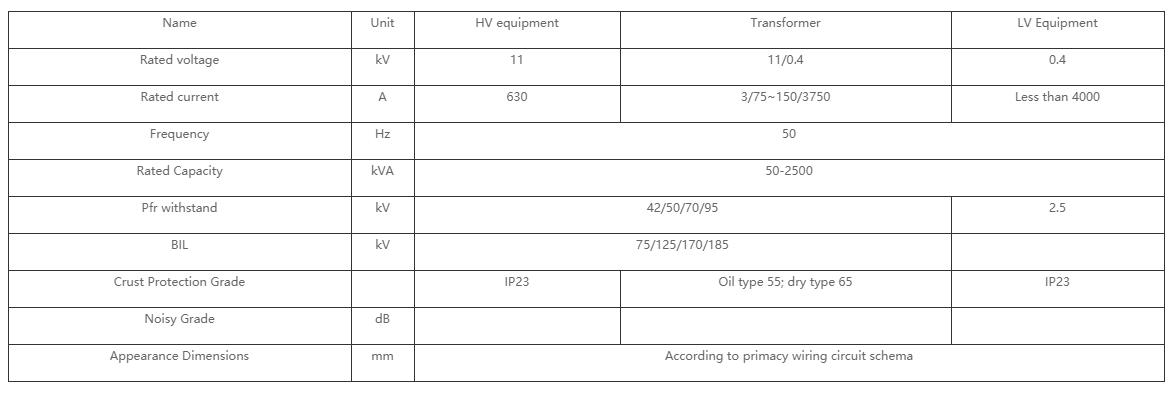

11kV CCS Compact Substation

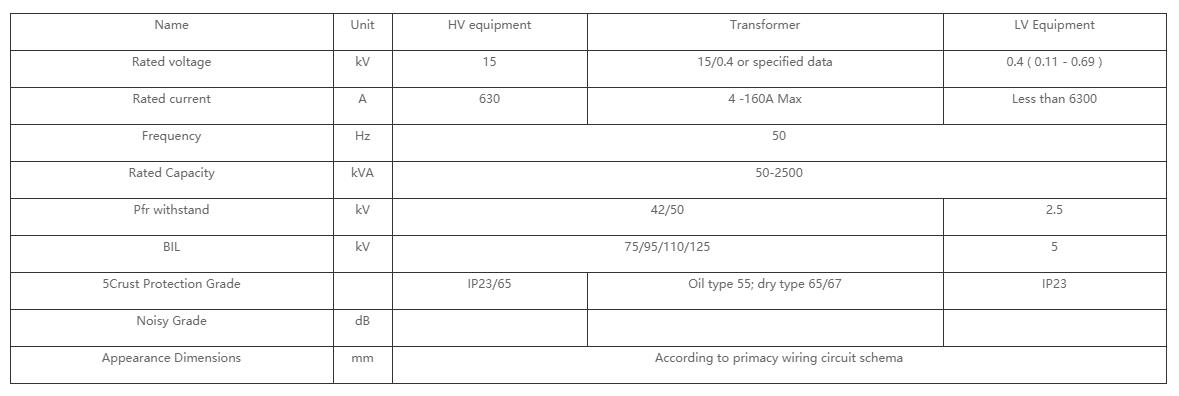

15kV CCS Compact Substation

15kV Prefabricated Substation

General

YB() series products is a kind of set of equipment which assembles the MV switch apparatus, transformer, LV distribution equipment together according to fixed connection scheme. This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.

Service environment

a) Air temperature: Maximum temperature: +40℃; Minimum temperature:-25℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake

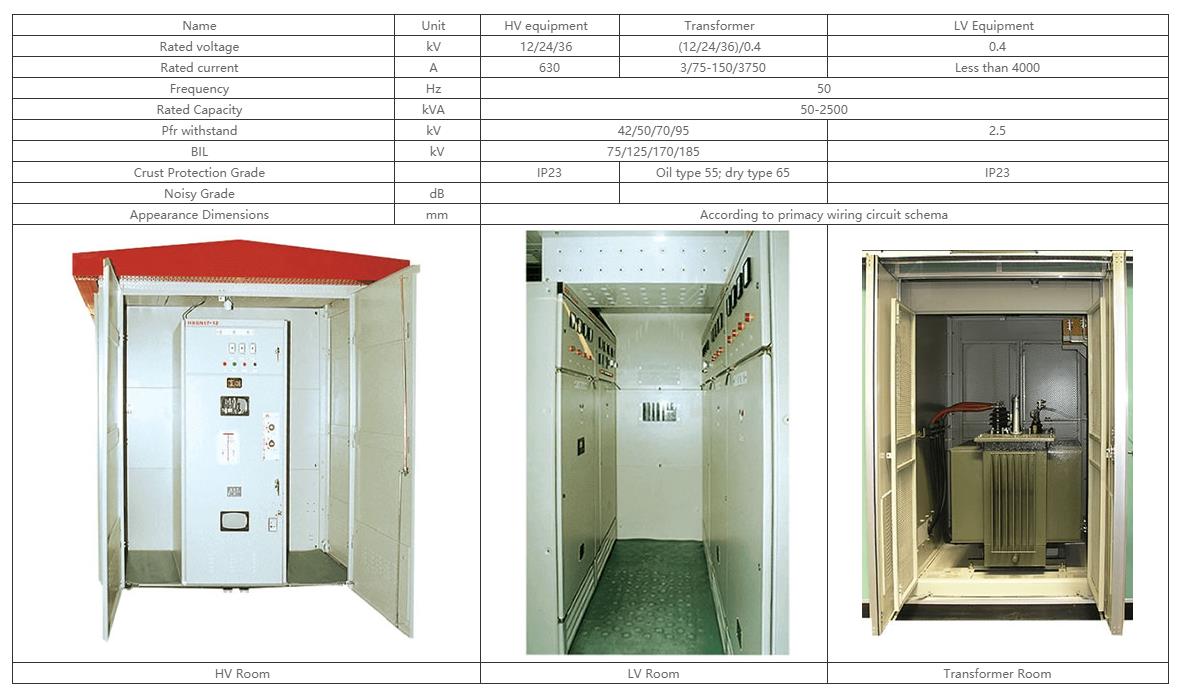

Main technical specifications

Main Designation Characteristics

The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).

The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.

The proof of the box is double layers structure and between the layers is filled with foam. There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.

Note: we offer special customized products according to client’s requirement.
