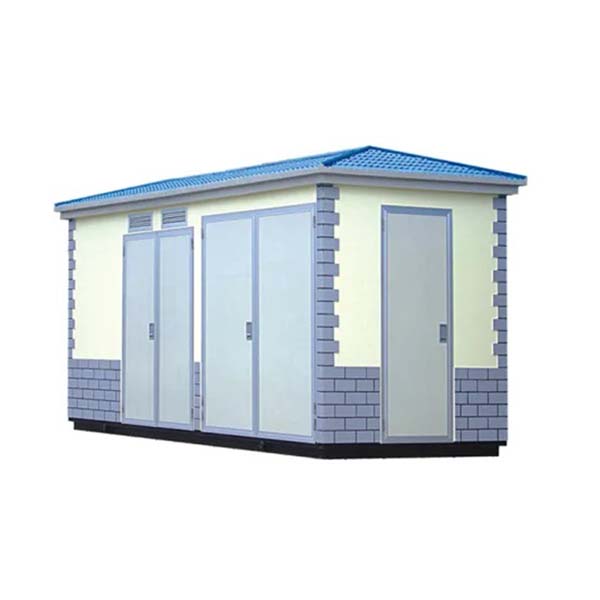

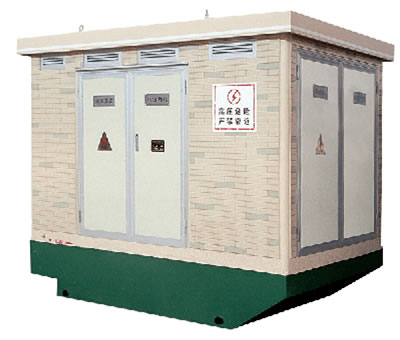

Outdoor prefabricated transformer substation(Combined Transformer)
Intelligent box substation :
The prefabricated-box substation is one of the most economic, convenient, effective and new distribution equipments. It assembles 12kV(24kV,36kV is available)high-voltage switch cabinet; transformer and low-voltage switch cabinet together, and is movable, assembled in plant.
The prefabricated box substation (Named Box Substation below) has many advantages, such as: completely whole set, small cubage, little area, ingoing load center, improving the power supply quality, reducing the circuit loss, shorten power delivery period, flexible location, adapt to setting, convenient assembly, reliable operation, small investment, rapid effect, and so on. Its widely used in urban republic power distribution, high rise building, residential areas, parks, and high-speed roads, as well as oil fields, industrial and mining enterprises, temporary construction areas. The product accords to the GB/T17467-1998<>, DL/T537-1993<<6-35kv box="" substation="" ordering="" technology="" standards="">>, and other standards.
Function characters:
System voltage:12kV(24kV,36kV is available) rated high voltage current:630A or more;
Collocating 3D transformer, reduce loss, upgrade the capability to 11 grade;
Collocating 3D transformer, upgrade insulation heat-resistant to H grade, can work long time in 180 setting;
Collocating 3D transformer, lessen 1/4-1/5 of the box cubage;
Design and make the ring network or users end as to the users requirements;
Design the box to steel plate configuration, complicated configuration or garden landscape configuration as to the users requirement;
Fix auto-parts, realize Three remote, check the data in distant, thief proof and power fare management;
Completely whole set, intelligent, little area, low investment, short project, ingoing load center, energy-saved and the lower loss, convenient assembly, adapted to setting, and so on.

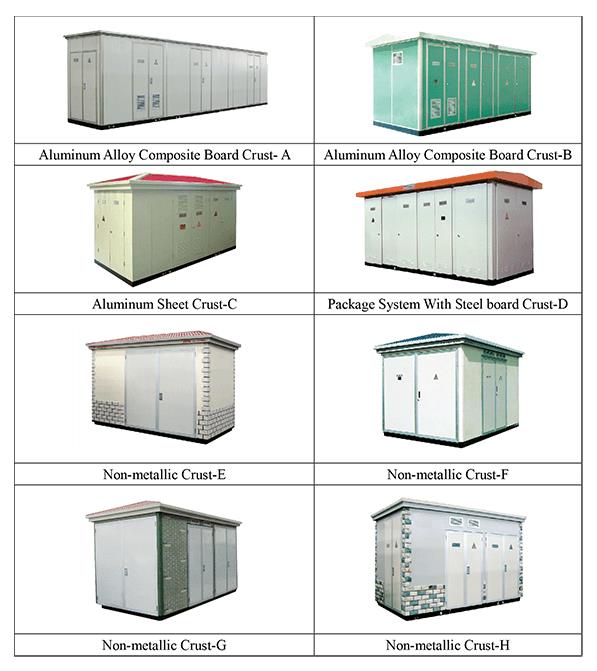

The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).
Main Designation Characteristics
The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.
The proof of the box is double layers structure and between the layers is filled with foam. There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.
Note: we offer special customized products according to client’s requirement.
Main characters of compact substation
Service environment
a) Air temperature: Maximum temperature: +50℃; Minimum temperature:-55℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
Main technical specifications
12kV/24kV/36kV Prefabricated Substation
General
YB() series products is a kind of set of equipment which assembles the MV switch apparatus, transformer, LV distribution equipment together according to fixed connection scheme. This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.
12kV/24kV/36kv Prefabricated Substation
General
YB() series products is a kind of set of equipment which assembles the MV switch apparatus, transformer, LV distribution equipment together according to fixed connection scheme. This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.
Service environment
a) Air temperature: Maximum temperature: +40℃; Minimum temperature:-25℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake

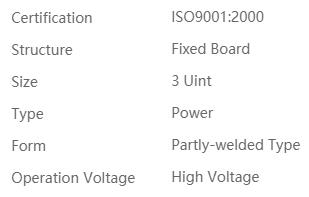

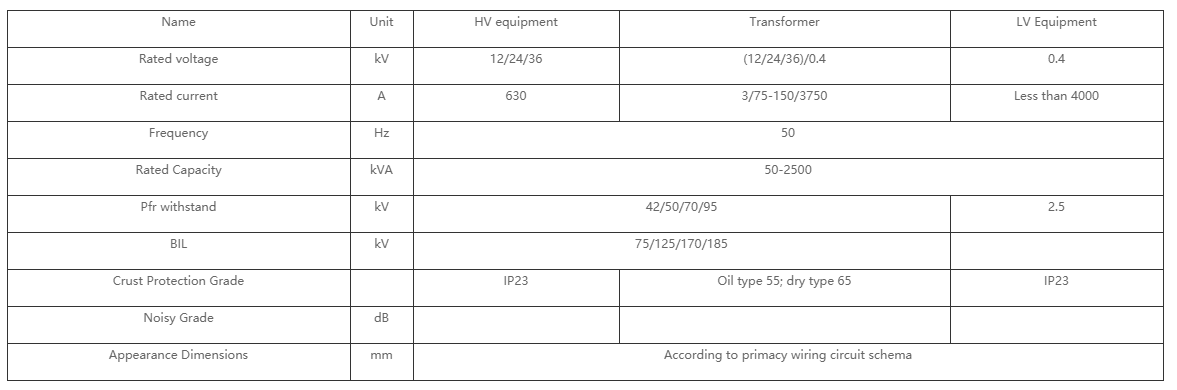

Main technical specifications
Main Designation Characteristics
The crust of the substation is designed according to the foreign advanced technology and physical reality. We provide many kinds of crust material such as aluminum alloy steel composite stainless steel board and non metal material(glass fiber).
The HV side use charge switch or vacuum circuit breaker. The transformer could be oil type hermetically-sealed type and dry type.
The proof of the box is double layers structure and between the layers is filled with foam. There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.
Note: we offer special customized products according to client’s requirement.
36kV/40.5kV Prefabricated Substation
36kV/40.5kV Prefabricated Substation Characteristics
This type substations are the HV side 40.5 kV, LV side 0.4-12 kV and 3 phase outdoor completeequipment .It is wide used in cities , towns ,factories and oil fields, wharfs etc. It is also used insome construction sites. The characteristics are small volume, convenient installation, low cost,high automation safe and reliable operation. Substation is combined with HV switch room,LVswitch room, relay room and transformer room.

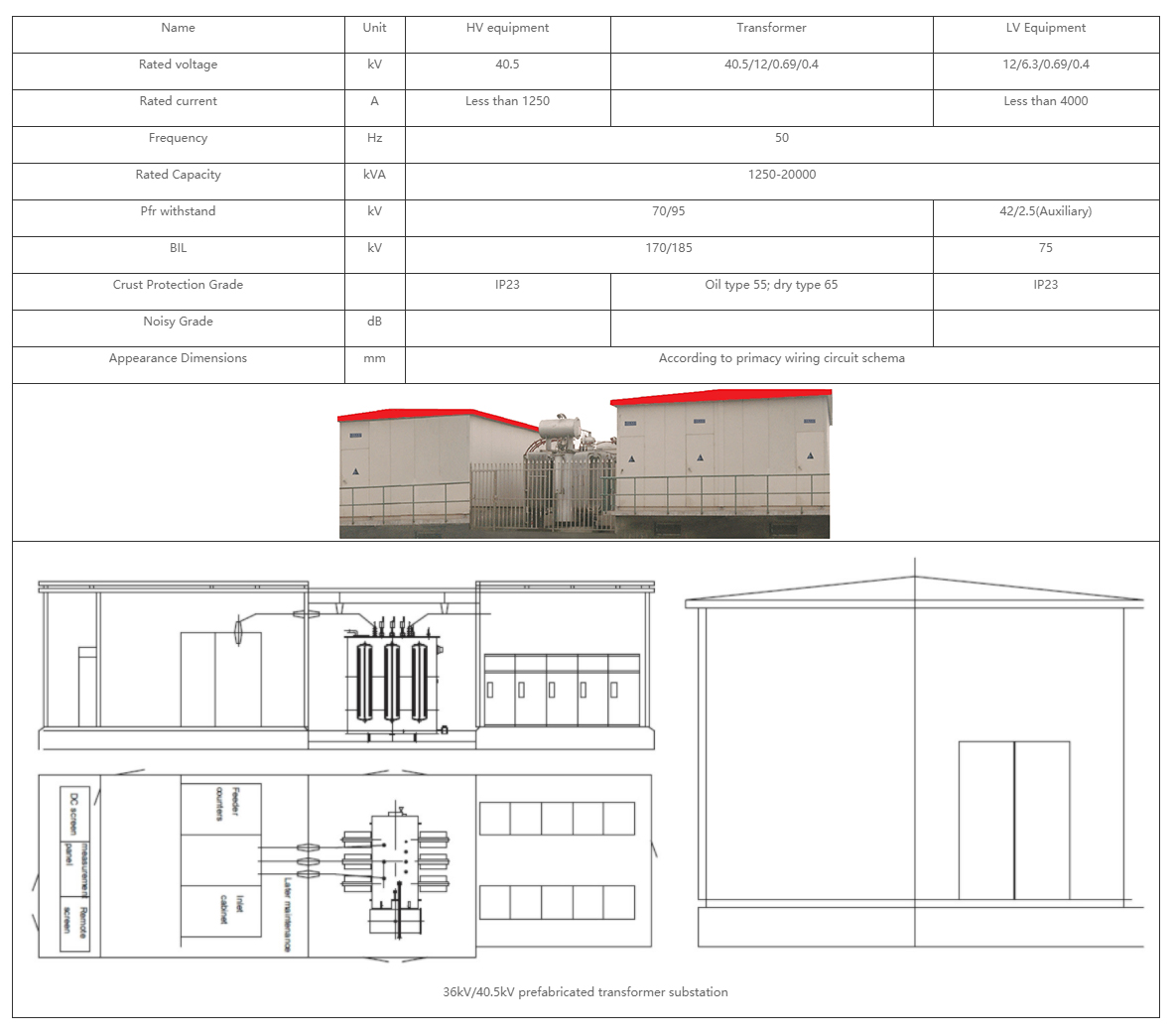

Main technical specifications for 36kV/40.5kV Prefabricated Substation

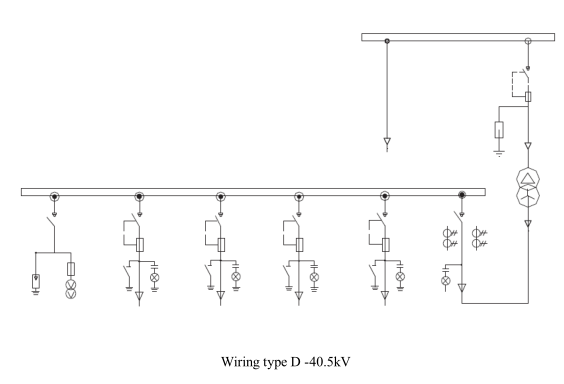

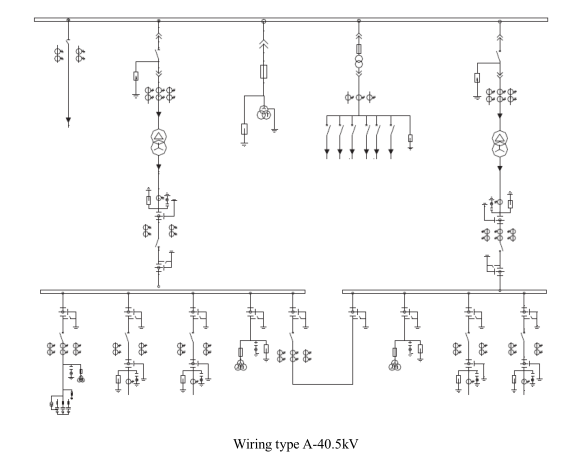

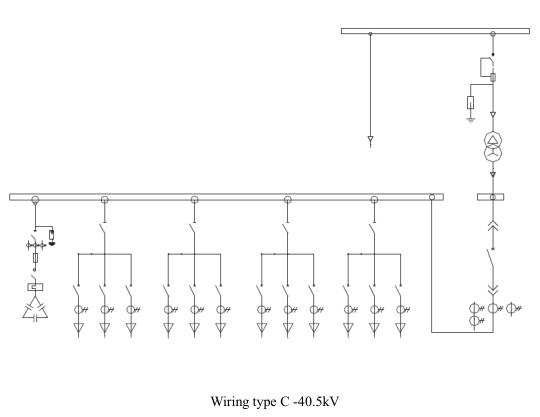

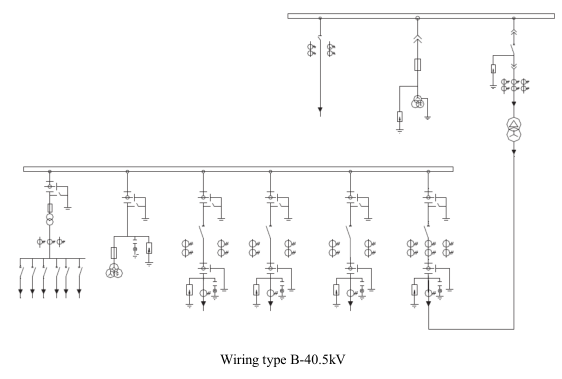

Main Primacy Wiring Circuit Schemas for Substation(40.5kV)
Note: we offer special customized products according to client’s requirement.
Underground Prefabricated substation
This equipments also belong to this Prefabricated substation category with a compact and special function of HV, LV and Transformer are all underground. People can enter into it through a well.
This substation is suitable for installing in square seeded strip and park The clients can choose half-buried type or whole-buried type.

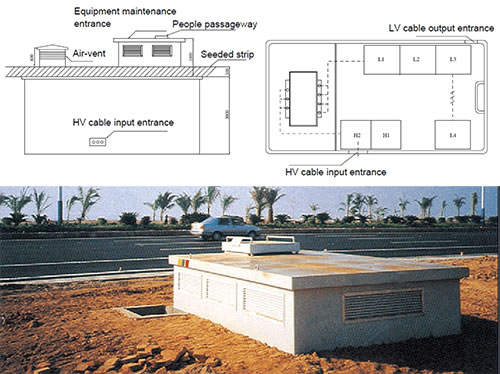

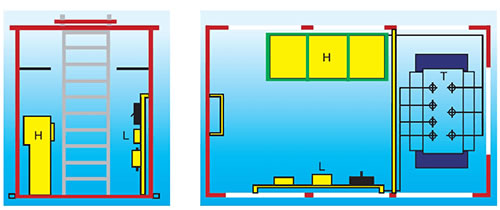

Sketch map of half-buried substation
Sketch diagram of whole-buried substation
