Description

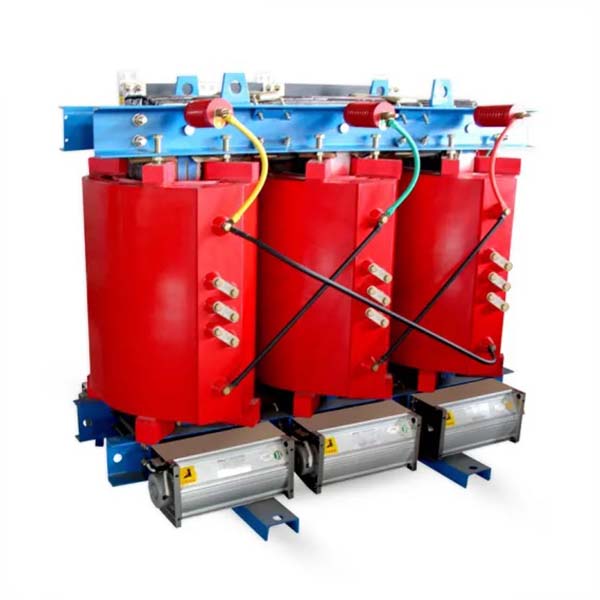

Weiguan Electric Co., Ltd. Dry Type Power Transformer

Main Characteristics:

1.Low no-load loss and energy conservation

2.Low noise and environmental protection

3.Long service lifetime and safe and reliable performance

4.Reasonable and aesthetic structural design and exquisite manufacture craftsmanship

5.A full variety of accessories and appropriate protection measures

Standard of Products:

GB1094.1-1996, GB1094.2-1996, GB1094.3-2003, GB1094.5-2008, GB1094.7-2008,

GB/T6451-2008, JB/T10217-2000, etc

SC(B)10 series resin-cast power transformers are in conformity with standard of IEC726,GB6450, GB/T10228-1997.with features low loss, compact and light weight low noise, damp-proof, anti-fouling, high mechanical strength, flam resisting, strong overload ability and low partial discharge quanlity. They are applicable to power transformation and distribution,hotel, restaurant commercial building, chemical plants, rail station, airpotr and other heavy load center.

Above mentioned parameters are only for reference, Weiguan Electric Co., Ltd. is able to design products according to specific requirements from end users.

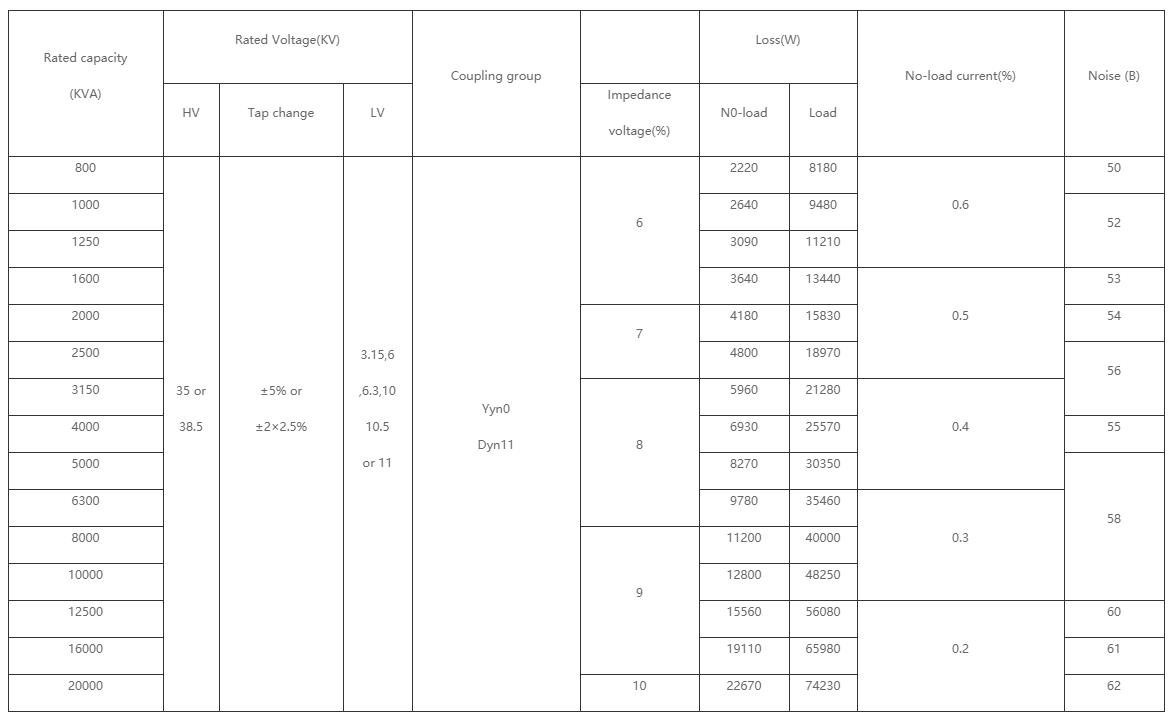

Technical data

35KV dry type power transformer with off-load tap changer
