Single phase pole mounted distribution transformers

Product Description:

Single phase pole mounted distribution transformers are designed and manufactured in compliance with all applicable ANSI and IEC standards. All transformers are oil filled, 65˚C rise,and designed for usual service conditions per ANSI C57.12.00. External welds are 100% coverage for added strength and corrosion withstand. Lift ears allow sling lifting while the unit is still banded to the pallet. The tank bottom weld is recessed for added protection.

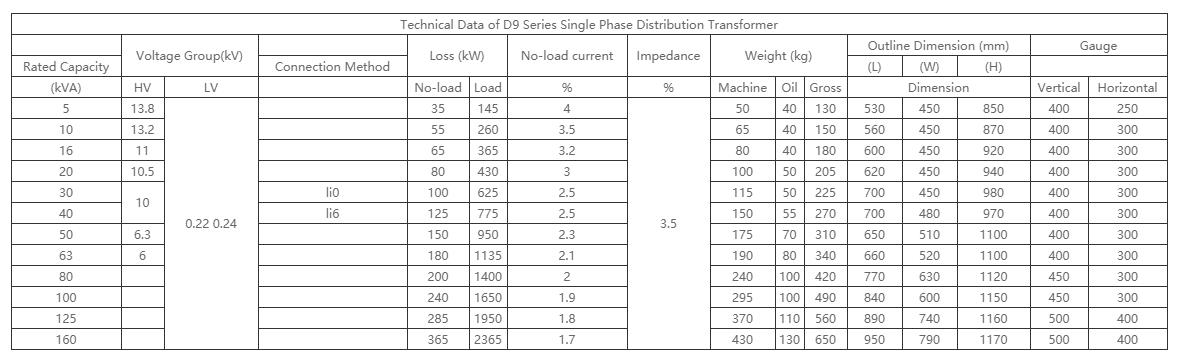

Technical data

Remarks: Normal Type No protection accessories.
CP Type with HV Load switch, HV fuse and LV over-current CB
SP Type: With HV load switch, HV fuse and surge arrestor
CSP Type: With HV load switch, HV fuse, surge arrestor and LV over-current CB

Normal Operation Condition

1. Altitude: ＜1000m indoor
2. Max .ambient: temperature +40℃
3.Max. daily: average temperature +30℃
4.Max .annual: average temperature +20℃
5.Min. temperature -5℃
6.Supply transformer operate under special conditions according to customer requirements.
