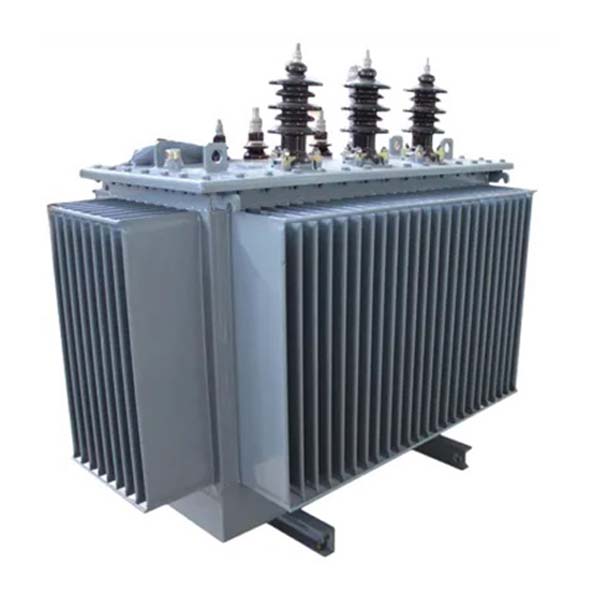

11kV 1000kVA Distribution Transformer

Features:

1. The transformer connection group uses Dyn11 to reduce the impact of harmonics on the power grid and improve the quality of power supply.

2. The transformer core is laminated with quality cold-rolled silicon steel sheets, which greatly reduces the no-load loss and no-load current. The core is bound to ensure the tightness of the core and reduce noise.

3. Fully sealed structure, which prolongs the service life. A positioning mechanism is added to the body to prevent displacement during transportation. All fasteners are equipped with fastening nuts to ensure that the fasteners are not loose during long-term operation.

4. Lower noise value than standard requirement. After this series of transformers have been transported normally, the relevant parts can be installed without core inspection, and they can be put into operation once the acceptance test is qualified.

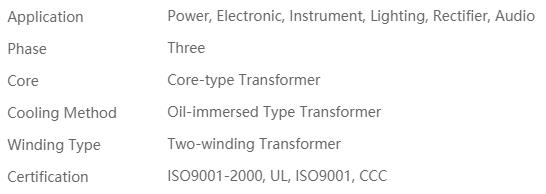

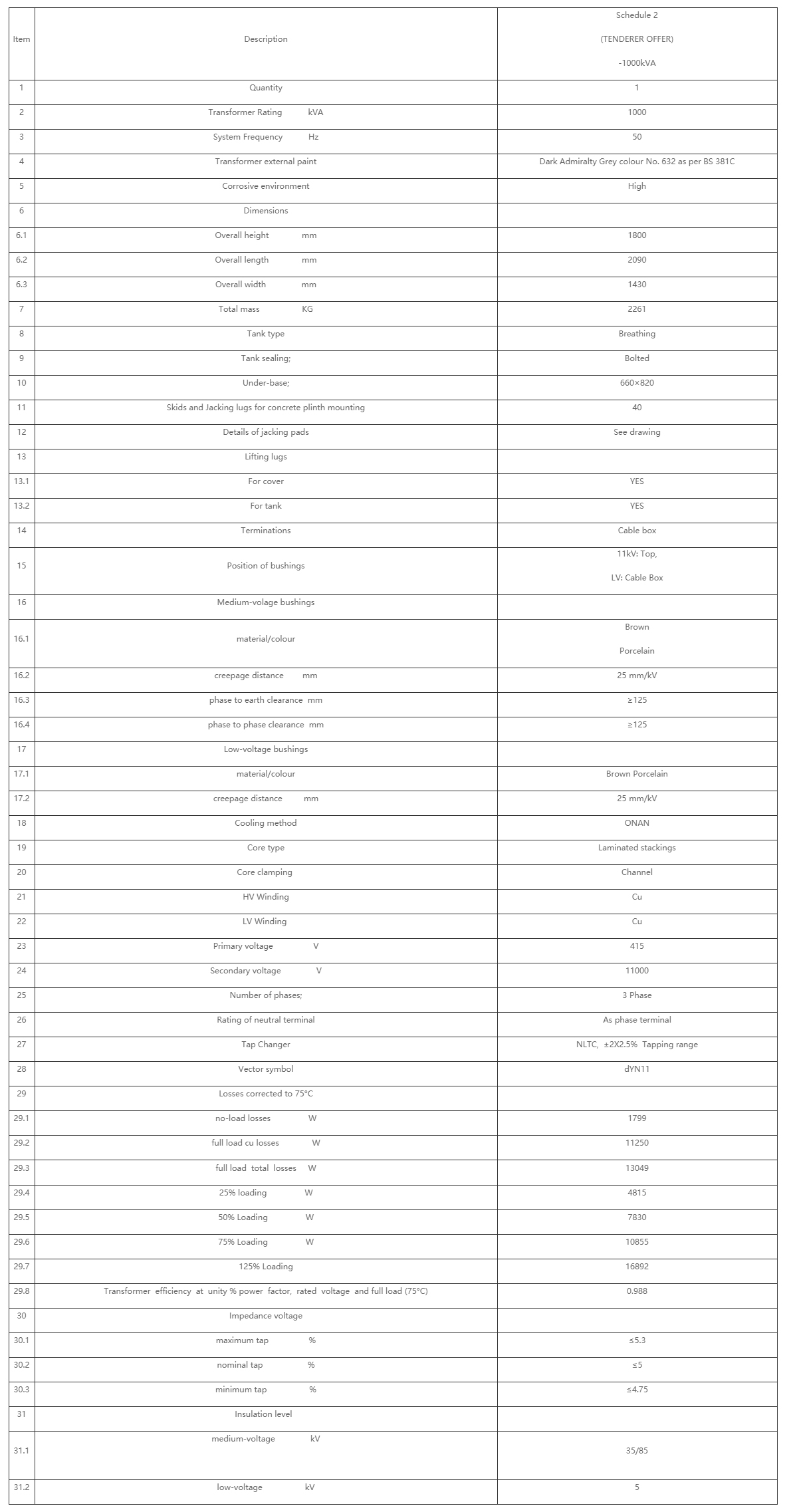

Technical Data:

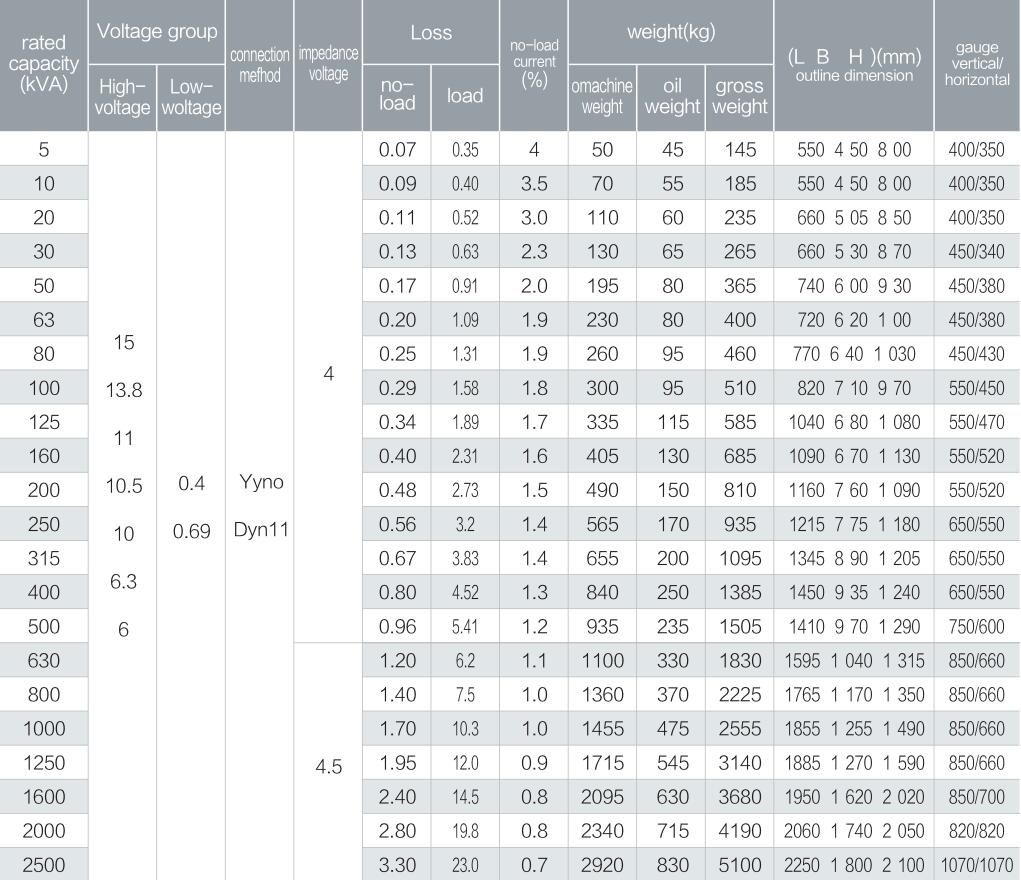

Parameter Selection

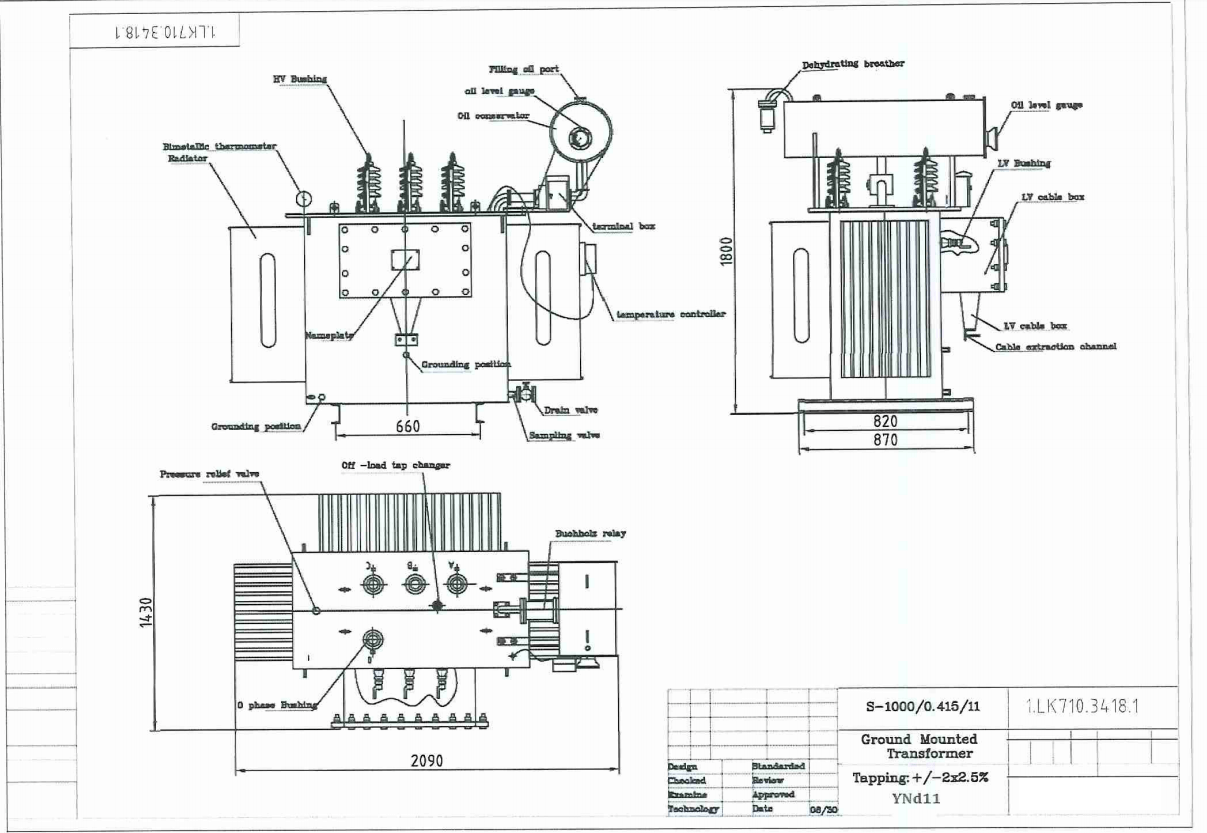

Drawing
