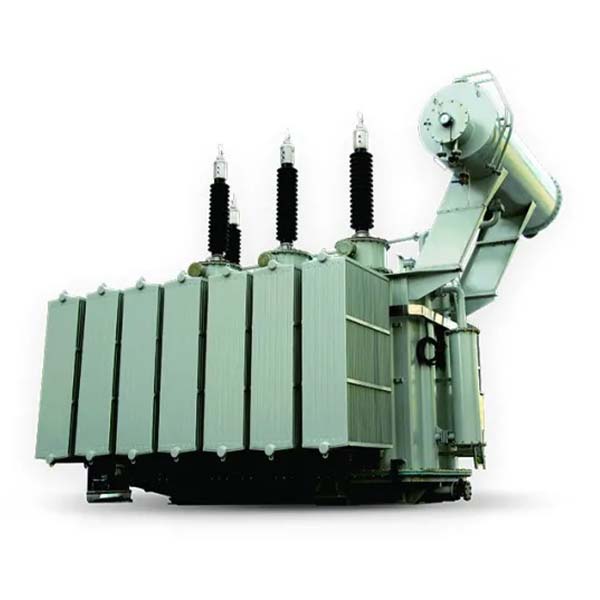

110/66 KV Power Transformer

110/66 KV Power Transformer

Product Description

have adopted series of important reforms on the 110kV level three-phase oil-immersed on-loadtap changing transformer referring material, process and structure. The transformer has the features of small size, light weight, high efficiency, low loss, low noise, reliable operation etc. which can reduce a large amount of power network loss and operation expense with significant economic benefits. It is suitable for power plant, substation, heavy section plant or enterprises etc.


  1. Type: outdoor

  2. Ambient temperature: max. temperature: +40℃; min. temperature: -30℃

  3. Altitude: ≤1000m (temperature rise shall be corrected when>1000m)

  4. Relative humidity: ≤90% (25℃)

  5. Installation place: without corrosive gas and apparent fouling.

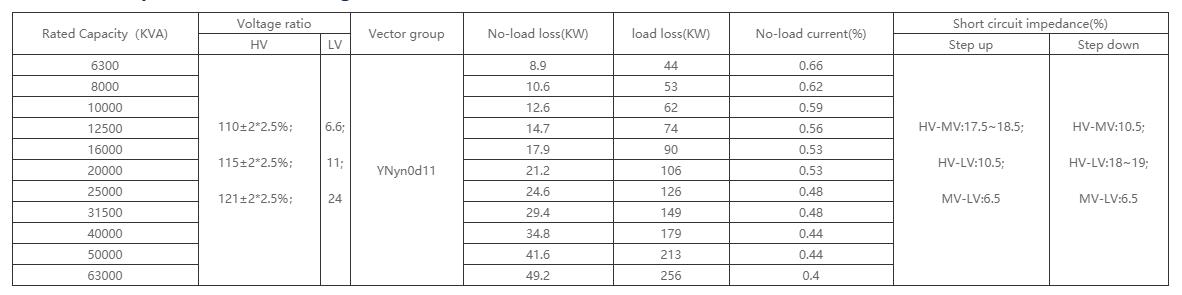

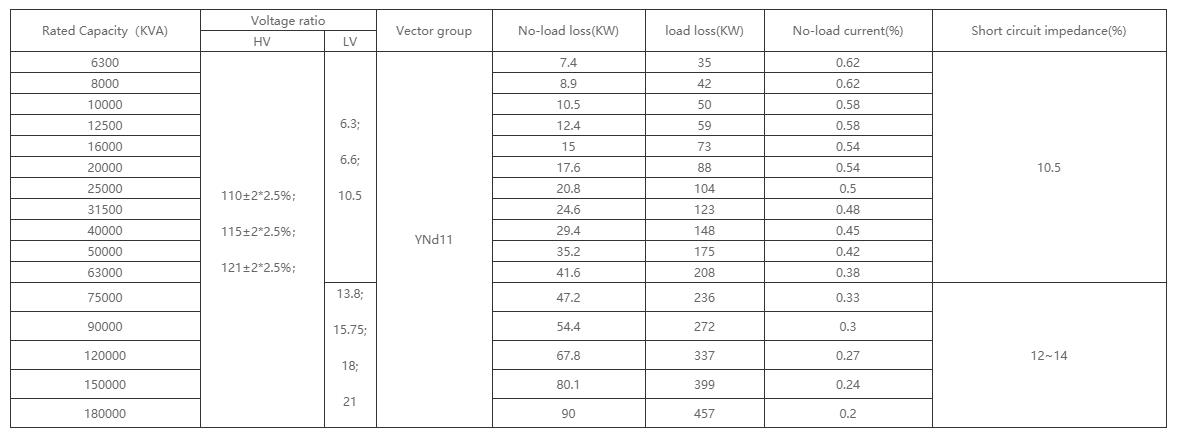

Technical data of 110kv powertransformer

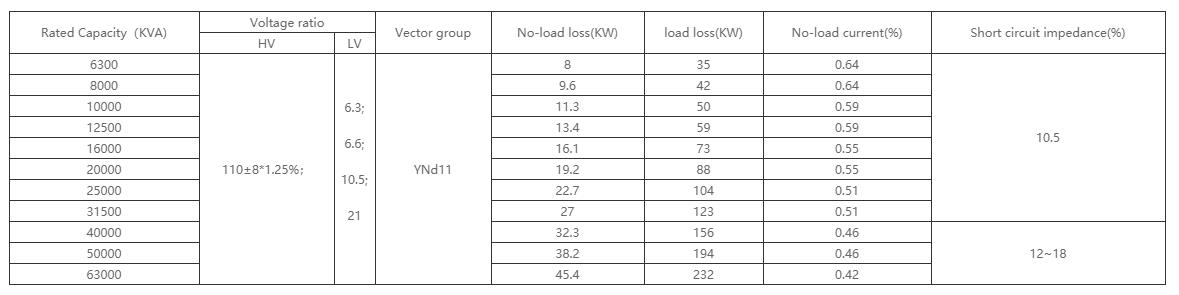

110kVThree-phase Double-windingNLTCPowerTransformer

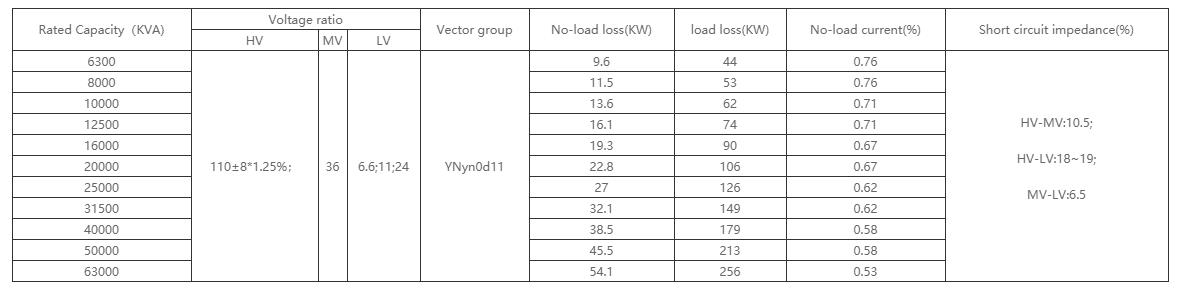

110kVThree-phase Three-windingNLTCPowerTransformer

110kVThree-phase Double-windingOLTCPowerTransformer

110kV Three-phase Three-winding OLTC Power Transformer

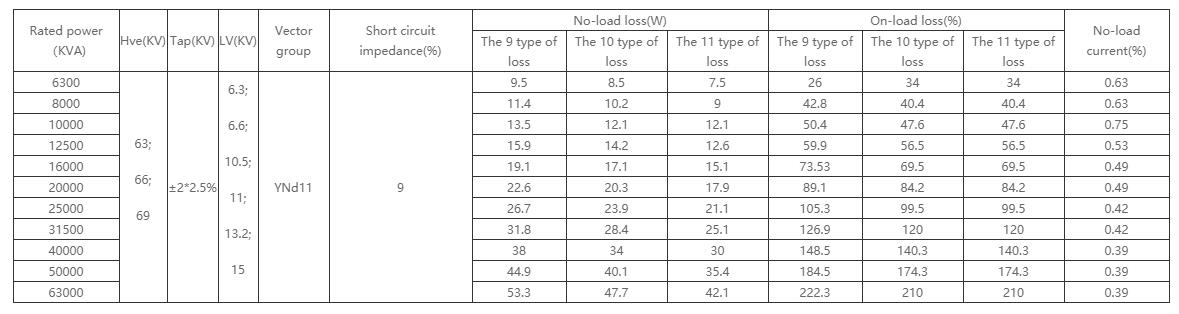

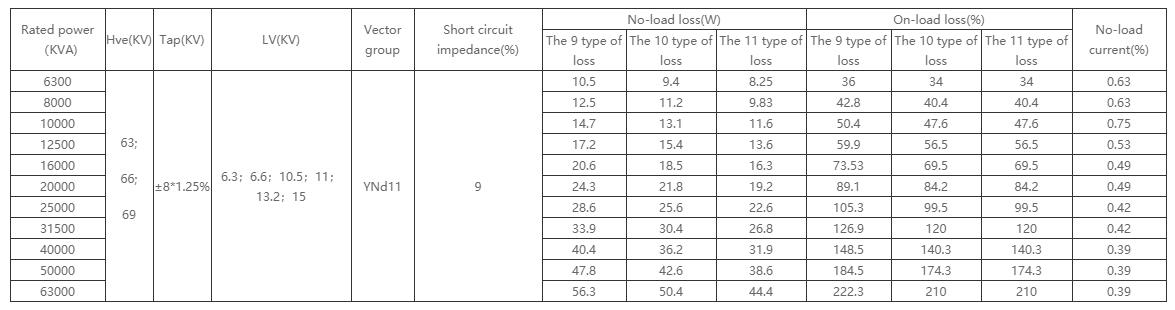

Technical data of 66kv powertransformer

66kV Three-phase PowerTransformerwith 0ff-loadTapChanger

66kV Three-phase PowerTransformerwith On-loadTapChanger

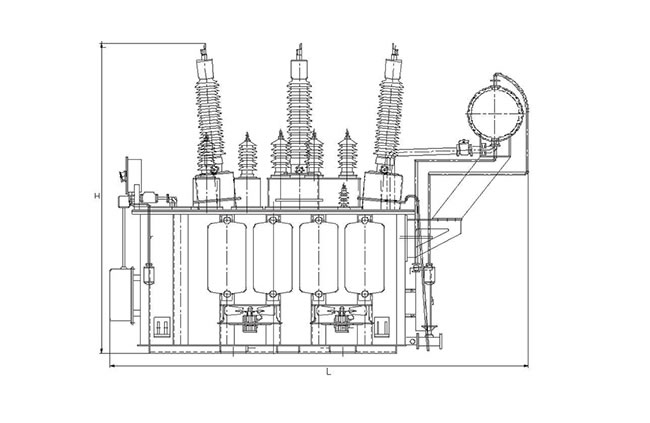

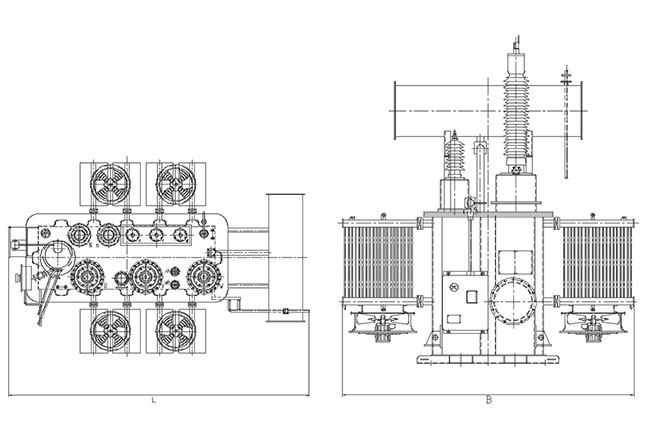

schematic diagram
