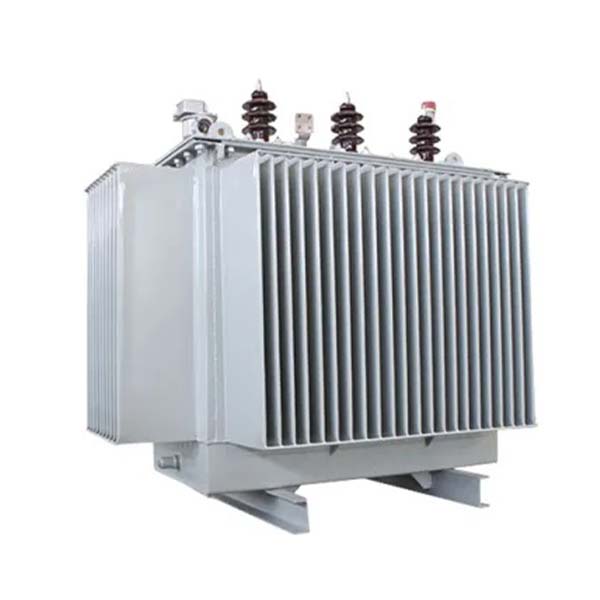

Low loss Oil immersed type distribution transformer

1.Application

3.3kV-36kV transformers are mainly made of iron core and windings which are placed in the oil tank that filled with insulating oil.

It is mainly used for power plant, power transmission and distribution station as the equipment of power transmission.

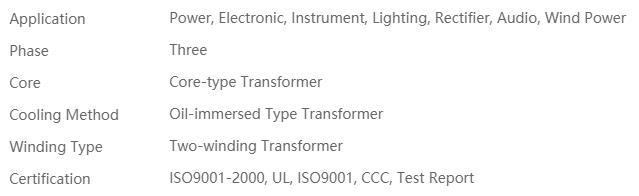

2.Type and Rating

Product types: Single phase or three phases

Two windings or three windings

On-load or no-load voltage tap changer,

Autotransformer,

Natural cooling forced cooling or oil cooling, etc.

.Capacity range: 50kVA-5000kVA

.Frequency; 50/60Hz

3.Standard

IEC 60076-1:2000, IEC 60076-2:1993, IEC 60076-3:2000, IEC 60076-5:2006, IEC 60137:2003; ANSI, IEEE, AS, etc

11kV Series

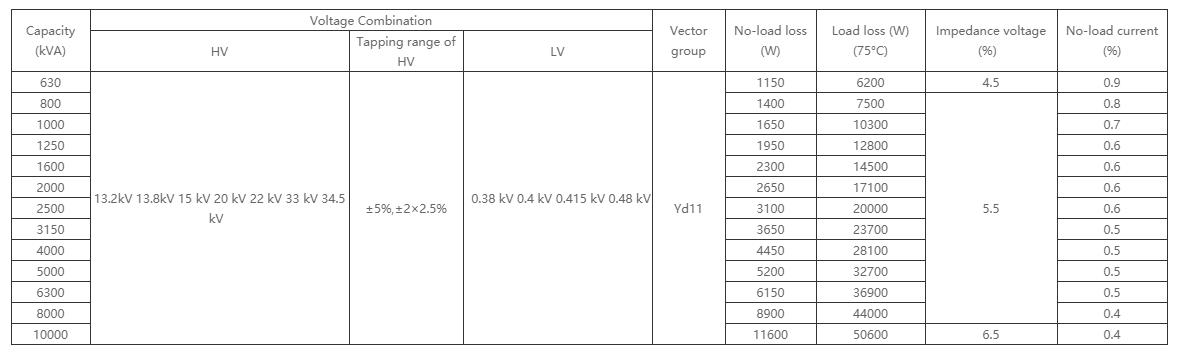

15kV up to 36kV Series

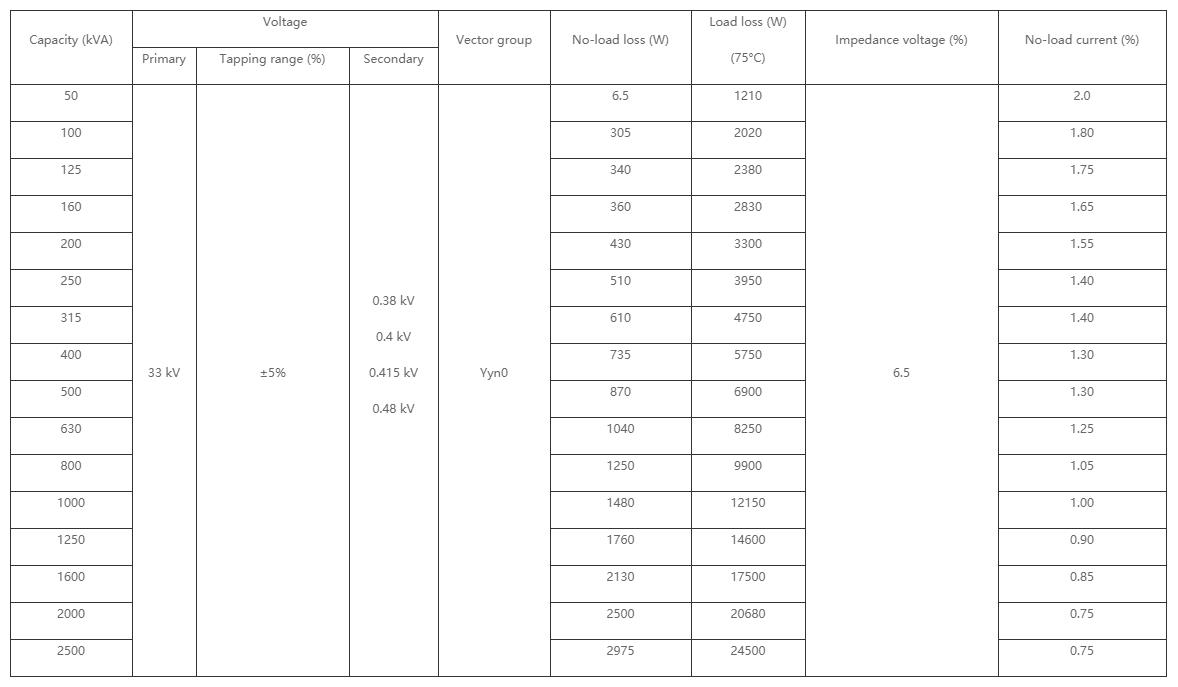

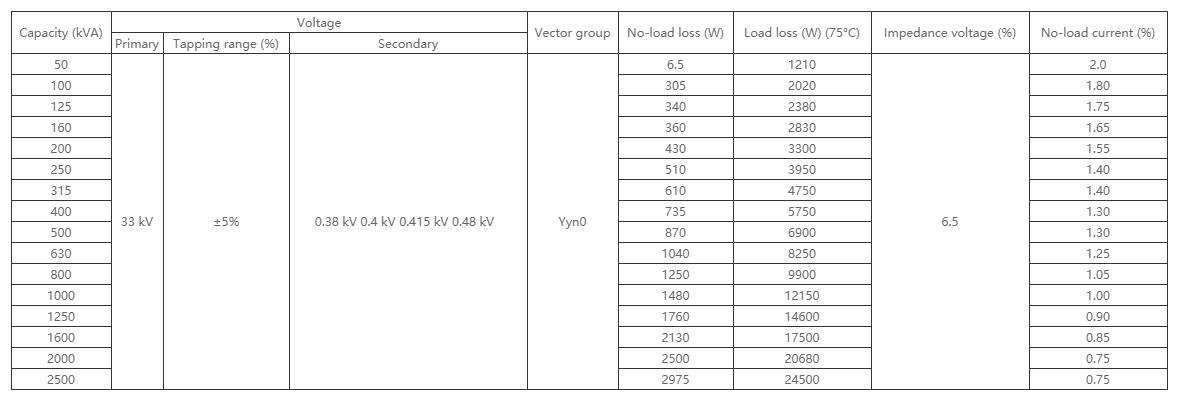

33kV series

35kV series
