RCS-3N Capswitch Capacitor switch

List price： 0.00

Price： 0.00

Product Description

Product Description

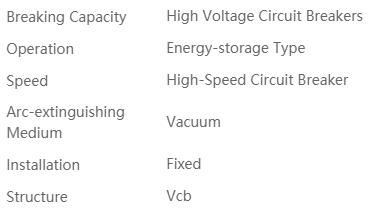

Description

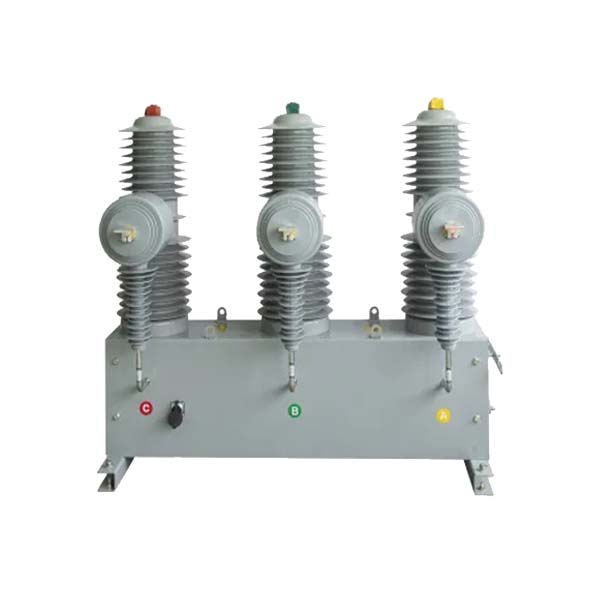

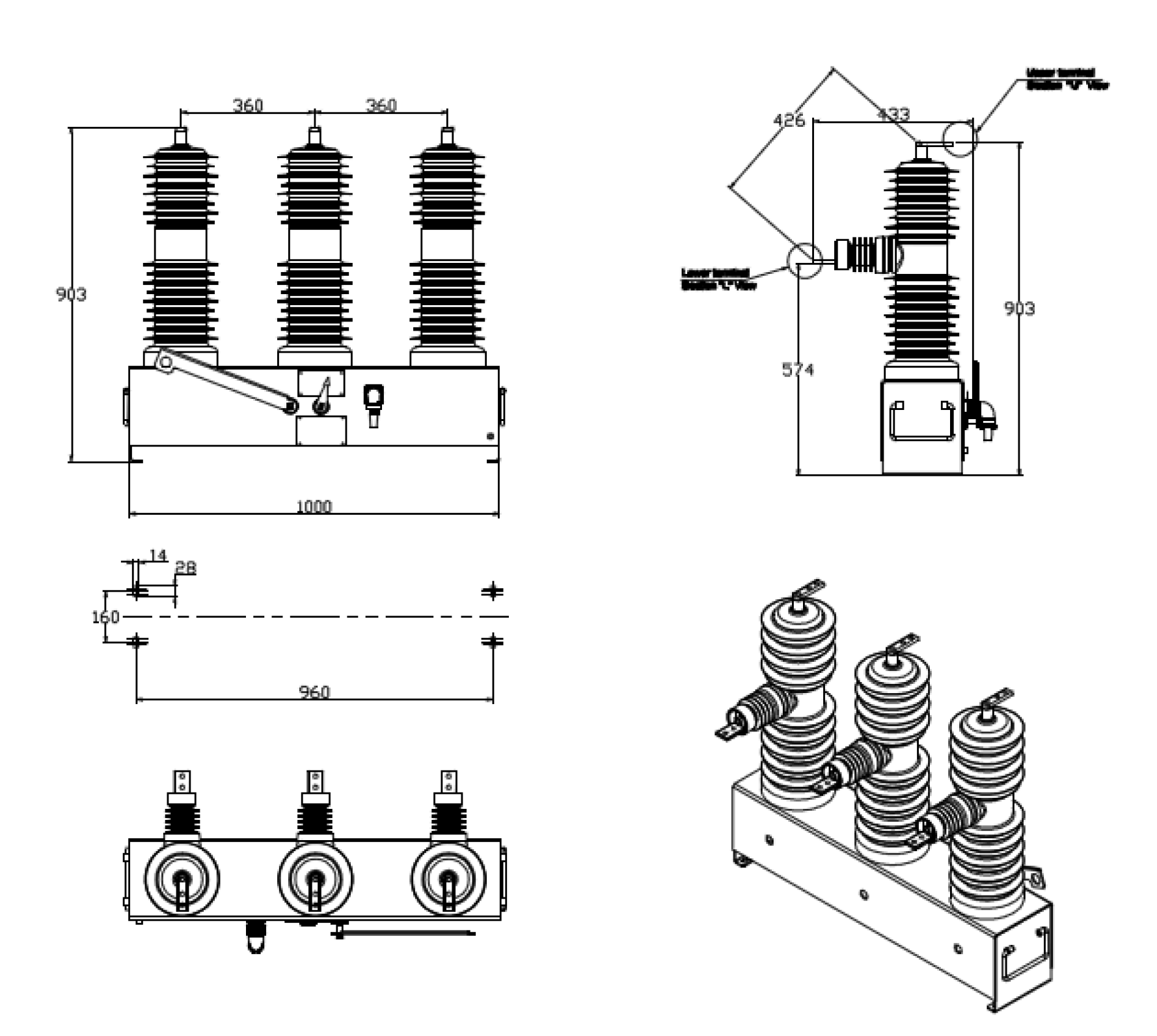

Rcs type Capswitch/Capacitor switch is a C2/C3 class special switchgear, Full complied with IEEE/ANSI C37.66 standard.

Weiguan offer you options:

Three phase solution,RCS-3N and RCS-3

Single phase solution,RCS-1

-------------------------------------------------------------

The main difference between RCS-3 and RCS-3N:

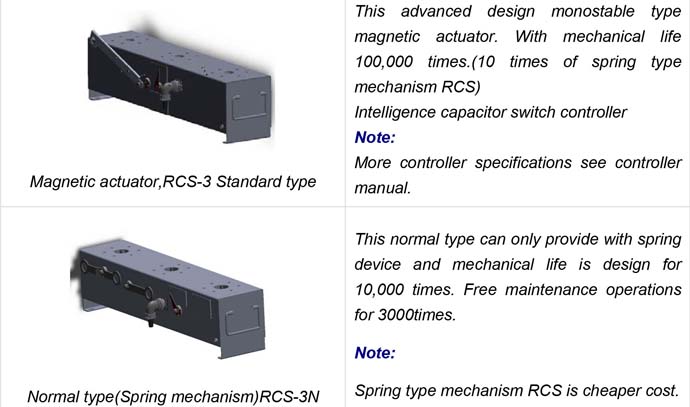

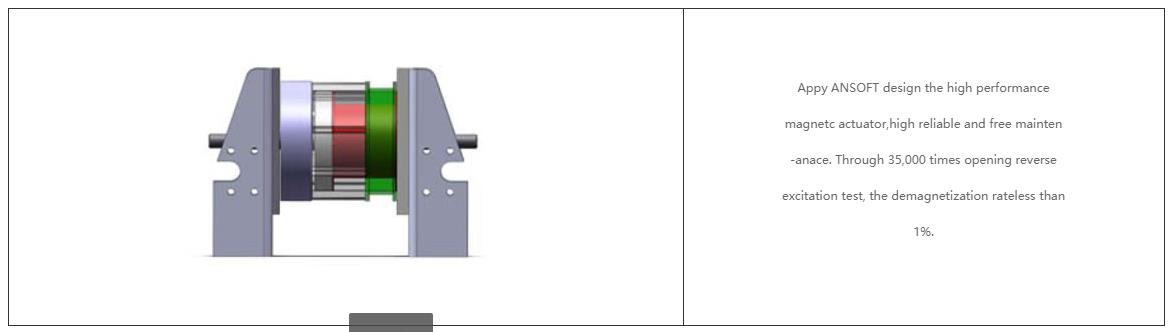

Standard RCS-3 capacitor switch is using magnetic actuator.

The normal economic type RCS-3N is using spring mechanism.

-------------------------------------------------------------

RCS-3N is upgarded type switch from RLW-24 and RLW-36 type vacuum load break switch.

General：

The Weiguan new generation RCS capacitor switch is a long mechnical life design vacuum switch that provides an operational life of over 100,000 (30,000open/close) maintenance-free operations.

Using the RCS will result in substantial savings from reduced maintenance and maximized bank uptime and will also improve Power Quality.
The RCS all comply with relevant standards.

Using condition：

Ambient temperature: -40 ~+85 , day temperature difference: 25℃；
Altitude:≤1000m area;
Wind speed no exceeds 35m/s;
No normally intensity vibration
No intensity erosion gas, medium place (for example acid, alkali, smother eg.)
Pollution class: IV class;
Charge temperature -40℃~+85℃。

Offering：

With optional classes for rated current range:
Rated voltage: up to 38 kV.
Rated current: 200A up to 600A, Max 32.5 kA making capacity.
With 2NO/NC Auxiliary switch contacts prepared for wiring
Auxiliary switch, with 600 Vac(240Vdc) insulation level, and 7.5A carry current.
With high distance creepage
More than 1300 mm creepage distance

Note:

(*) is meant special for optional. When needed should discuss with our engineer.

Offering

With optional choice by Normal type and magnetic actautor mechanism.

With optional classes for rated current range:

For 11kV, with 600A, Max 32.5kA fault making peak capacity.

For 15kV, with 600A, Max 32.5kA fault making peak capacity..

For 27kV, with 600A, Max 32.5kA fault making peak capacity..

For 38kV, with 600A, Max 32.5kA fault making peak capacity .

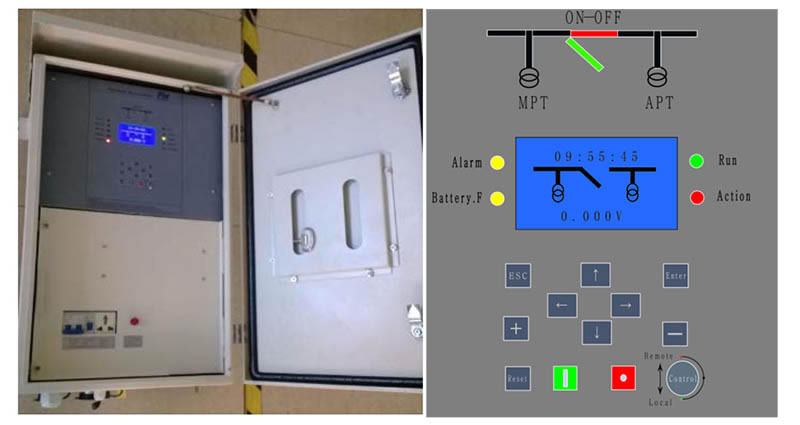

With optional communication protocols & I/O port for user choice:

RS-232 and RS-485 ports supporting.

DNP3.0 communication protocol support(*).

Modbus communication protocol is optional(*).

IEC 60870-5-101 communication protocol support.

The Capacitor switch can communicate through GPRS(Or GSM) modem with English or

Chinese languege (*).

Note: (*) mean should customized by manufacturer if needed.

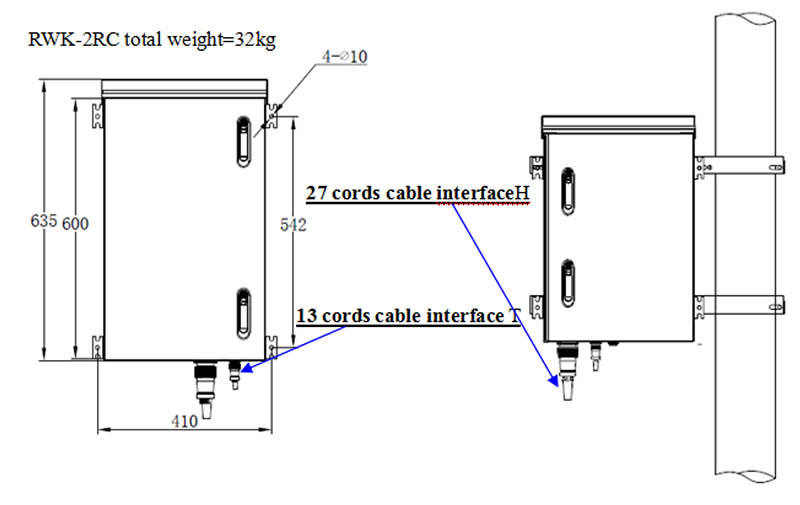

Accessories of RCS

Note:

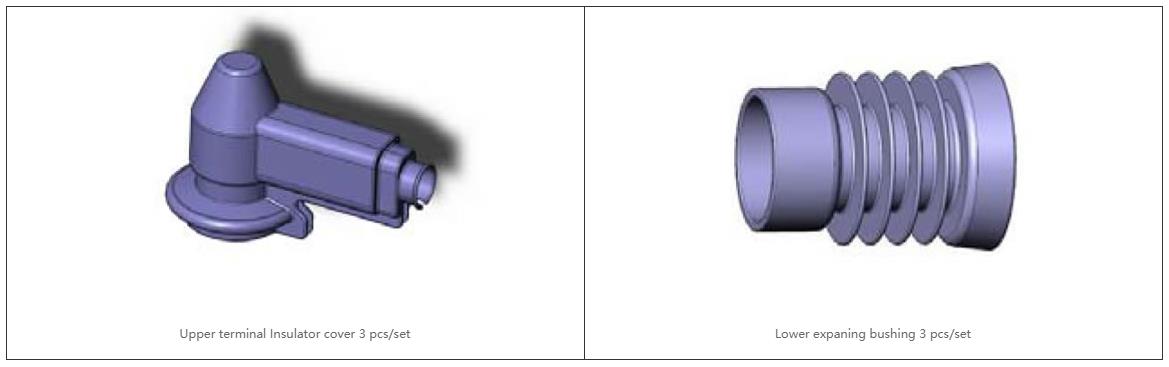

all above insulating components for BIL 170kV expanding using. Any question pls contact with our engineer.

note:

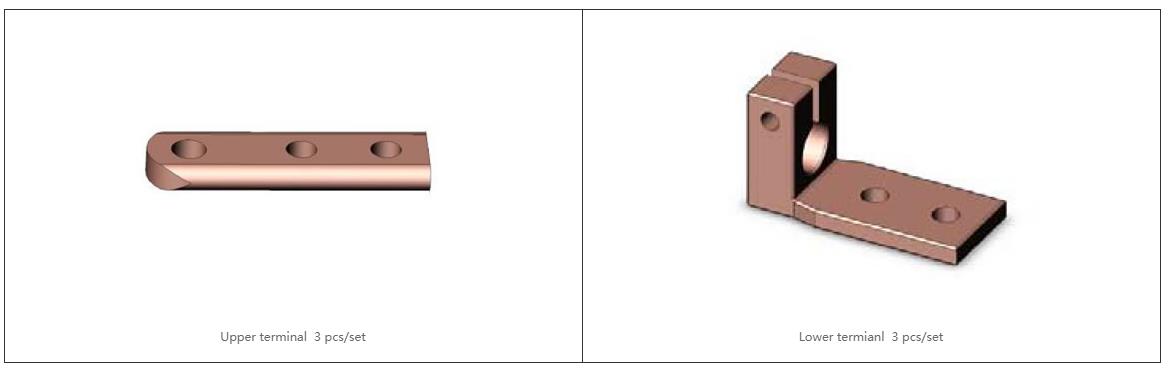

Standard made of T2 copper material, for 630A rated current using. With expanding range.

Main new advantages of RCS capacitor switch

Note:

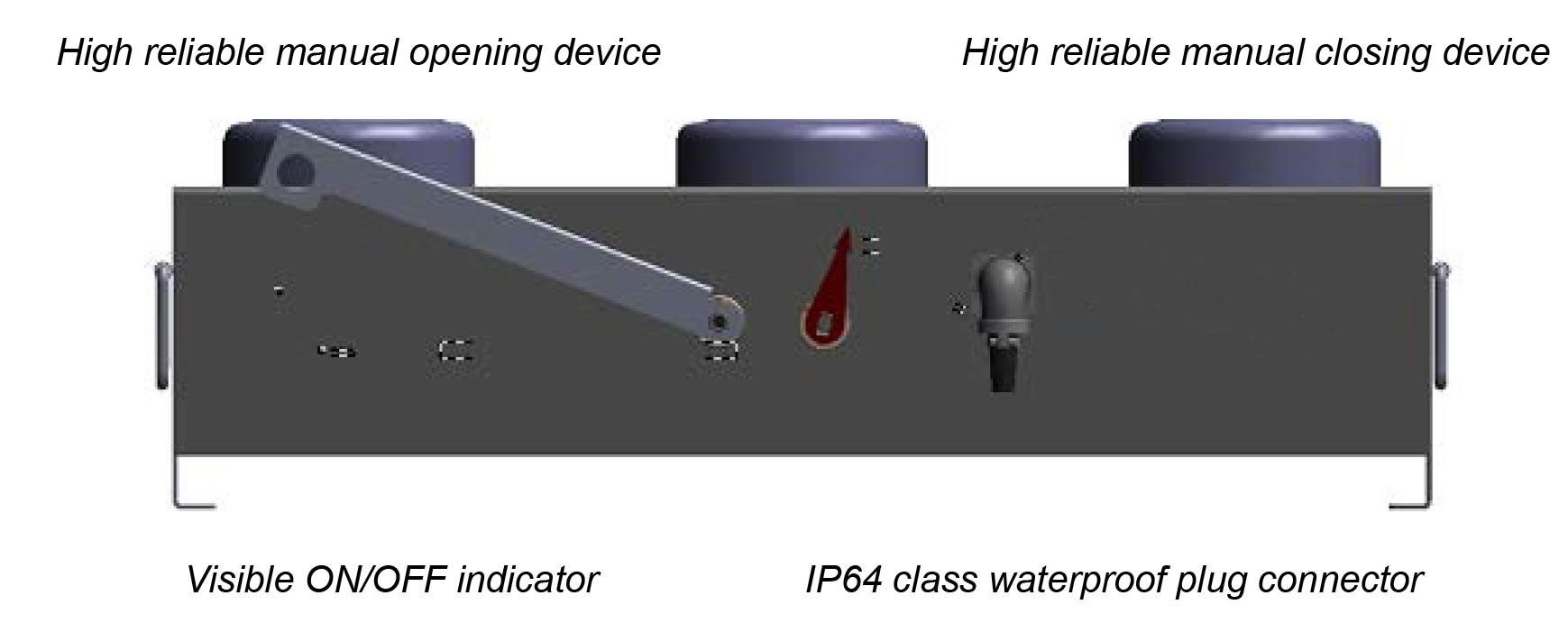

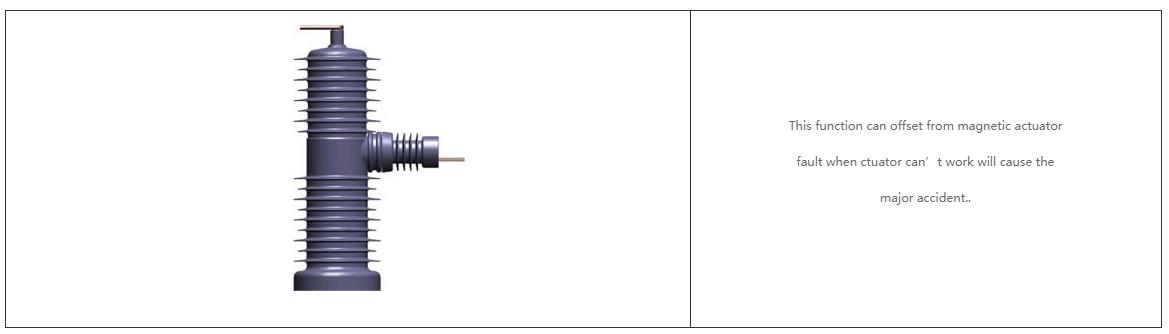

Weiguan Supply special design manual closing device technology with own patent,It applied for nomal and abnormal situation closing.

Its closing speed(time) comply with IEC62271-100(GB1984-2003 standard).

Primarcy incomer terminal(directly connect to intterruter reduce power lost). Vacuum interrupter(Adopt the APG technology with external silicone rubber mold presure covering,increasing the whole insulation and weathering performance) Outlet bushing (external modular design easy for quality cotrol amd maintenanace).
