Description

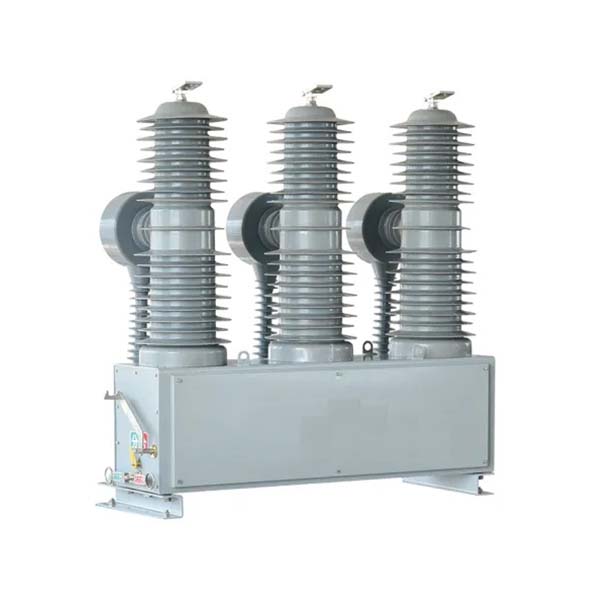

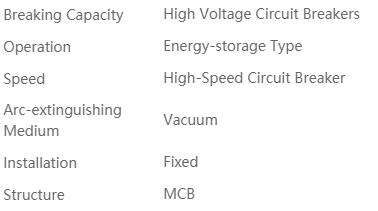

RVB type outdoor vacuum circuit breaker covering 12kV up to 36kV range for transformer substation and switch station using.

The current rating: 630A,....2500A, short circuit breaking current rating: 25kA,...40kA.

Its perfect design for instead of traditional type like OHB,VBF,3AF,ZW7,ZW30,ZW39,ZW37...etc.

More light, compact, relieable, and friend-enviromental.

-------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Weiguan Electric Co., Ltd. developed RVB-40.5 series of outdoor vacuum circuit breaker using modern processing technology and computer-aided design techniques, combined with the latest generation of spring bodies and the advantages of a permanent institution. Its pursuit of high reliability, easy to maintain design concepts to create a generation of superior product, is the most reliable electric power system the best option.

RVB-40.5series of switches of the main use Ansoft software and solidwork designed with the overall nice, safe and reliable.

RVB-40.5Series switches have a variety of styles to choose from:

RVB-40.5Nordinary outdoor vacuum circuit breakers, spring actuator come standard with mechanical life of 20,000 times.

Weiguan Electric Co., Ltd. all series switches meet the following criteria:

ANSI/IEEE C37.60/IEC 62271-100( GB1984-2003 China standard)

GBT11022-1999 China Standard

IEC 60255-11

IEC 60255-21-1 Class I

IEC 60255-21-2 Class I

IEC 60255-21-3 Class I

IEC 60255-22-1 Class III

IEC 60255-22-2 Class IV

IEC 60255-22-3 Class III

IEC 60255-22-4 Class IV

Use of the environment

Ambient temperature: -40 ℃~ +85 ℃, the daily average temperature:25 ℃;

Altitude: ≤3000m(in excess of the value of technical discussions with the Division I);

Wind speed:35m/ s;

Earthquake intensity: not more than 8 degrees;

Degree of ambient air contamination level not greater than: Ⅲ level;

Daily average ambient air relative humidity ≤ 95%, on average ≤ 90%;

Saturated vapor pressure of daily mean values ≤ 2.2 × 10-3Mpa, on average ≤ 1.8 × 10-3Mpa;

More than the use of environmental conditions, please consult with the manufacturer.

main characteristics

RVB-40.5 Spring type VCB main characteristics

Reliable manual opening device
Reliable and labor-saving manual closing
Visible sub-closing indicator
IP64 protection class plug connector

Description:
Weiguan Electric Co., Ltd. offer a unique design of the manual switch on technology to meet the state of conventional and unconventional features of the Closing. Its speed to meet IEC62271-100 and similar GB1984-2003 standard requirements.
The emergence of the technology to make up for the permanent institutions and agencies in their respective spring shortcomings, is a new generation of high-performance power switching distinguishing features.

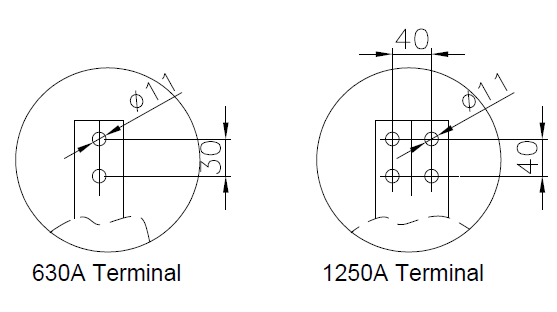

Primary busbar terminal (direct overlap with the interrupter to reduce unnecessary power losses)
Vacuum interrupter (APG process using solid-solid insulating sealing technology, plus silicone rubber molding compound technology to improve the overall switch weather performance)
Extensible outlet pipe (plus modular design, which will help insulation margin of certainty and product interchangeability requirements)
RVB series vacuum switch rejection of the traditional switch design concepts, will absorb some of the advanced design concepts, simplifying the overall transmission mode switch, greatly reducing the transmission power loss of this switch makes switching better overall performance and longer life.
Makes the whole body switches provide a higher life expectancy, more stable mechanical properties.
RVB-40.5N provide up to 25,000 times the mechanical operation of life, institutions 20,000 times the number of maintenance-free operation.
RVB-40.5Mto provide up to 100,000 times the mechanical operation of life.

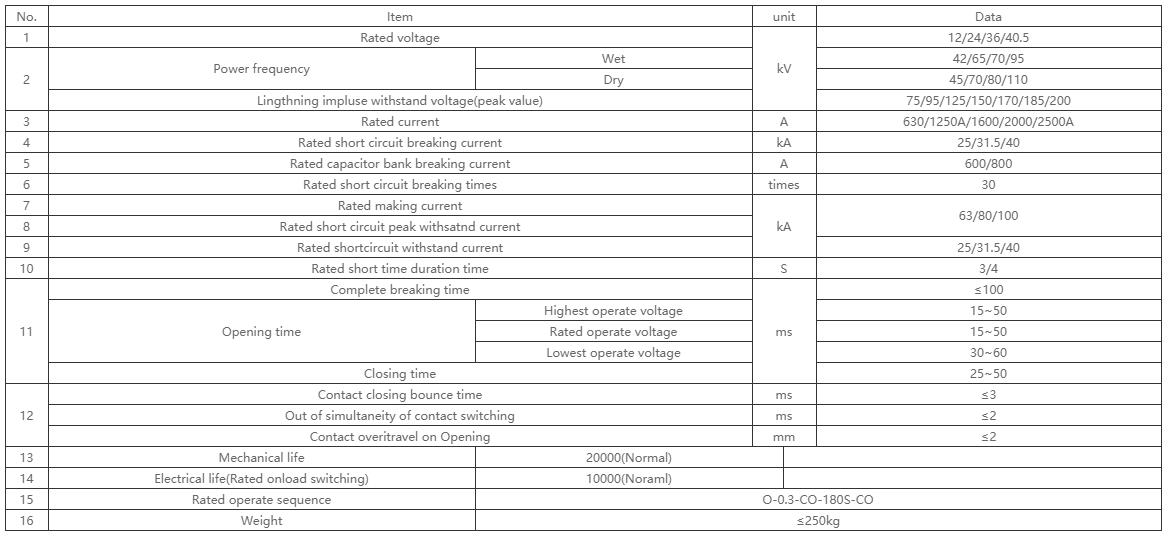

Technical data

Main new advantages of RVB-S

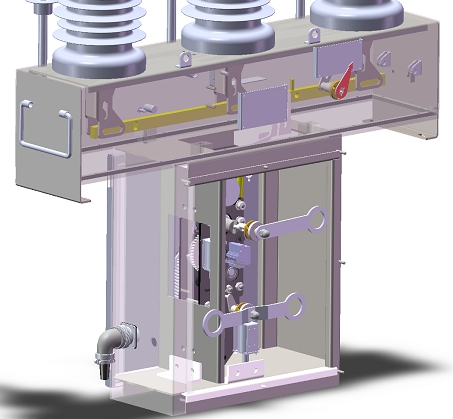

The VCB tank feature

10,000 times mechanical life spring mechanism, provide with voltage options: DC and AC 110/220V for opening and trip coils. DC and AC 110/200V for motor and auxiliary heater or temperature and humidity control.The Vacuum circuit breaker tanks are manufactured from 4mm thickness steel and standard tank are powder coated a light grey colour.It can performance serve more than 20 years long term under heavy duty circumstance.

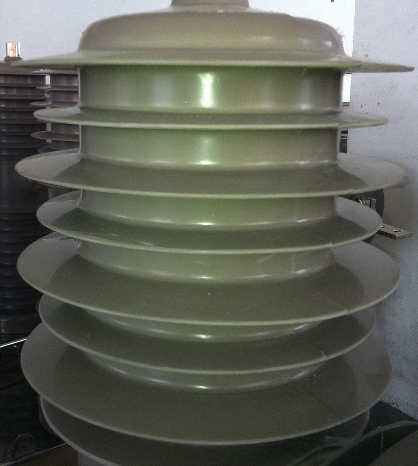

The vacuum embedded pole feature:The circuit breaker’s vacuum interrupter insert in an epoxy resin solid pole, and external coated with a high reliable, stable material:Fluorocarbon silicone rubber (γ-trifluoro propyl methyl polysiloxane) With excellent electric insulation, weather resistance, ozone, biological inertia, can be stand underthe long-term use in -55 ~ +200 ℃.

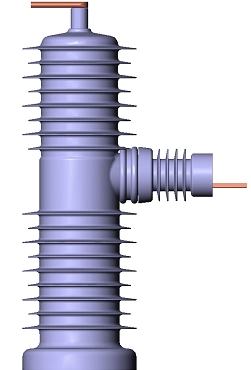

Basic VI pole                     VI pole with CT

Note:
RVB-□S is ready designed for different primacy options :
Standard type and special type with CT for relay protection and current measuring purpose.

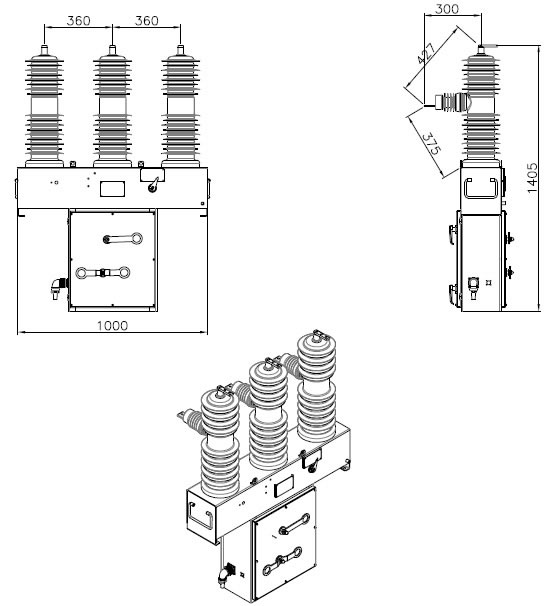

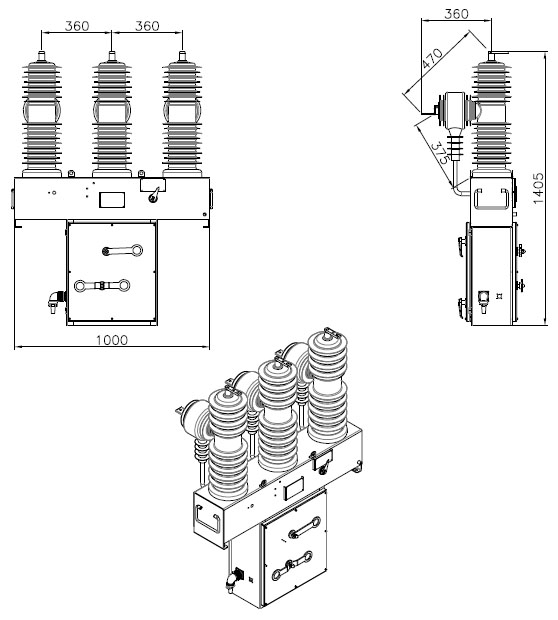

General Arrangement Breaker Only

33kV,800A,12.5kA,..20kA.(Without CT type)

22kV,630A,…1250A,...20kA,…25kA(Without CT type)

Note:
For special requirements and technical problems please contact the company's technology department.

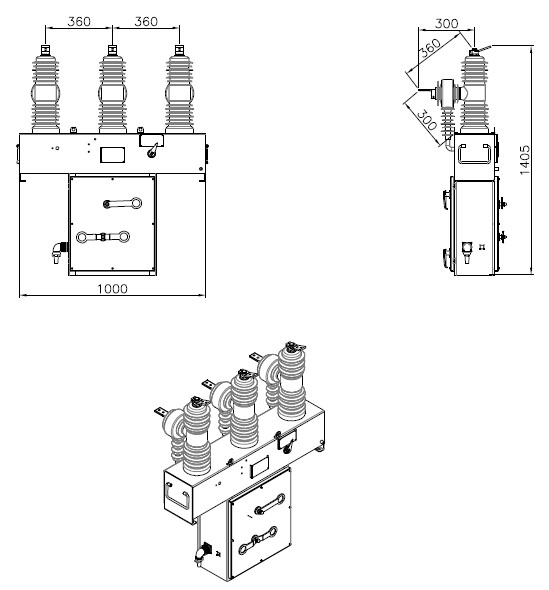

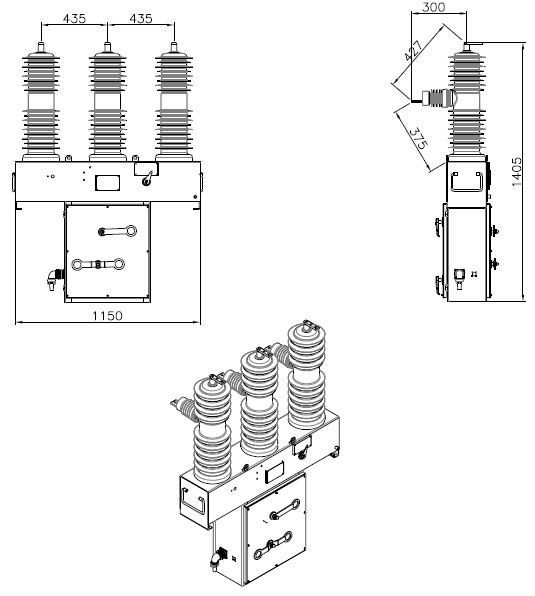

with protection Ring CT

22kV, 630A,…1250A,.20kA,…25kA(RVB with Ring type CT )

12kV, 630A,…1250A,.20kA,…25kA(RVB with Ring type CT )
