Description

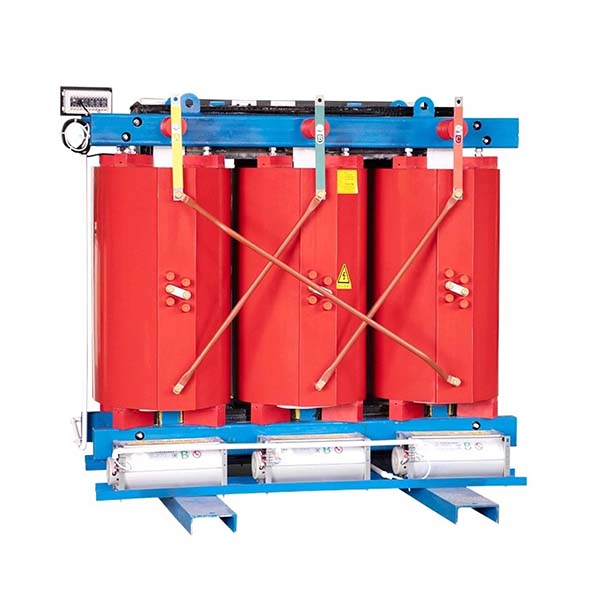

Three phase Dry type Distribution Transformers cast resin

Standard:

Full complied with IEC60076,GB1094-1996

Transformer special service condition:

The height above sea level is above 1000m;

Ambient temperature:

Highest air temperature +40℃;

Lowest air temperature -45℃;(defines in detail when placing an order)

Transformer normal service condition:

The height above sea level is below 1000m;

Ambient temperature:

Highest air temperature +40℃;

Highest daily average air temperature+30℃;

Highest annual average air temperature+20℃;

Lowest outdoor air temperature-25℃.

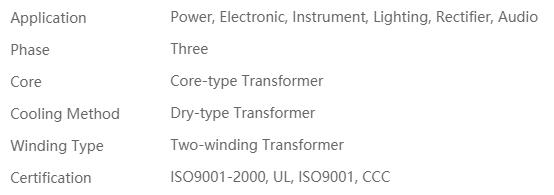

Product Description:

Three phase dry type distribution transformer rated voltage during 6-35kV, dry type transformer are most used

in widely used in the space such as urban power network, skyscraper , shopping center, hospital, hotel ,

subway ,  laboratory , station , wharf, airport, distribution power station and residential areas.

1. Rated voltage:6.6kV,10kV,11kV,13.2kV,13.8kV,15kV, 20KV, 22KV, 33KV,35KV

2. Rated power:30kvA~2500kvA

3, Two windings or three windings

4, On-load or no-load voltage tapping changer

5. Frequency:50HZ /60HZ

6. Vector group:Dyn11, Yyn0, Ynd11, or others

7. Rating plate:Yes(Beierbian Group brand or Customer brand)

8. Parts:

1) fans

2)temperature controller

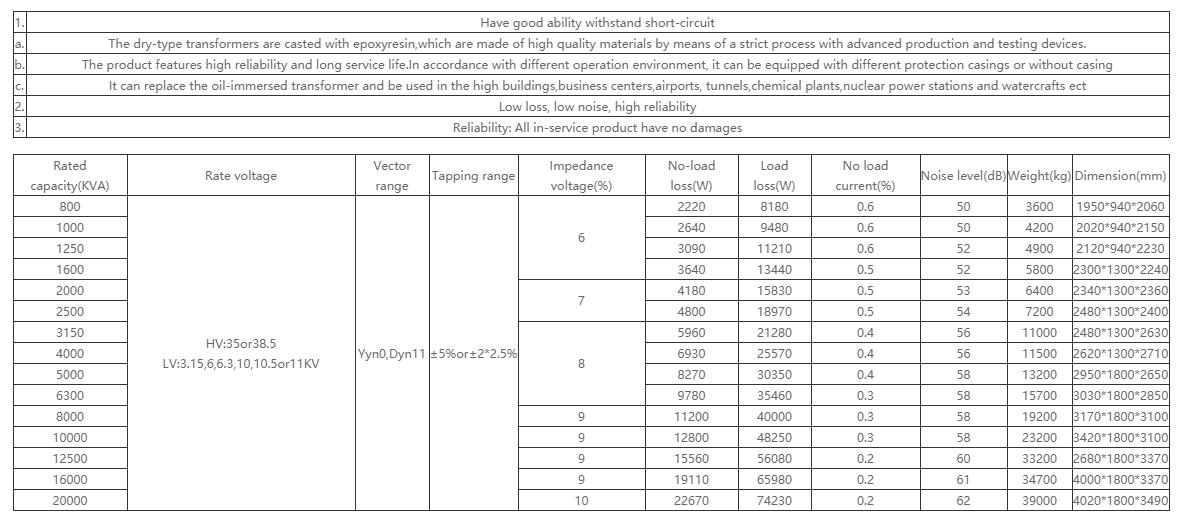

Technical data

Above mentioned parameter are only for reference, Beierbian Group is able to design products according to specific requirements from end users.
