Description

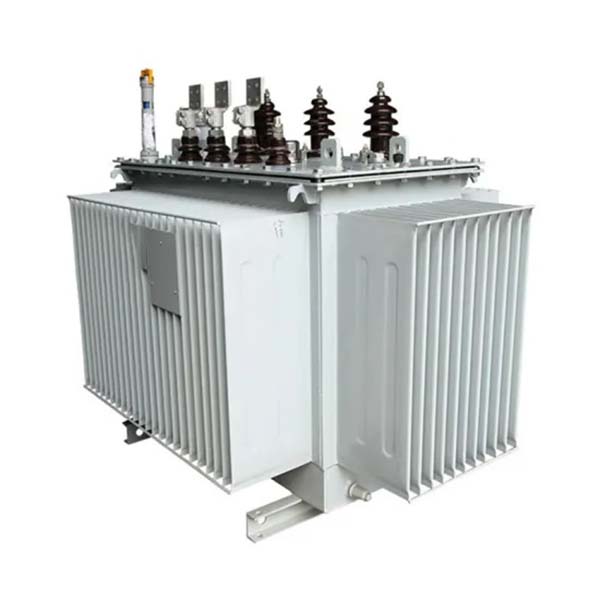

Three phase amorphous coil distribution transformer with standard fully complied with  IEC60076,GB1094-1996

Amorphous alloy Material Introduction

Amorphous alloy material is a low-loss transformer, using a novel energy-saving material . Amorphous alloy strip with iron as the basic elements tighter with silicon and other elements .

Under certain conditions melting using ultra rapid cooling technique and spraying it directly into the cooling

rollers to cast thin .

Amorphous alloy material characteristics

(1) Material is thin , the thickness only 0.025mm, 1/10 of silicon steel

(2) High resistivity is about three times as the silicon steel belt

(3) Non- directional of crystalline arrangement

(4) High frequency usually a few thousand Hertz

(5) Iron loss is small at 1.35T, the loss is only 0.21W/kg ,65% smaller than ordinary silicon steel

Transformer special service condition

The height above sea level is above 1000m;

Product Description

Three phase oil immersed electrical transformer rated voltage during 6-35kV, oil immersed transformer are most used in power plant, power grid transmission and distribution station,

industry& commerce electrical substation as the electrical equipment of power transmission,

1. Rated voltage:6.3kV,10kV,11kV,13.2kV,13.8kV,15kV, 20KV, 22KV, 33KV,35KV

2. Rated power:5kva~25000kva

3, Two windings or three windings

4, On-load or no-load voltage tapping changer

5. Frequency:50HZ /60HZ

6. Vector group:Dyn11, Yyn0, Ynd11, or others

7. Cooling:ONAN/ ONAF/ OFAF

8. Tap changer:3 levels; 5 levels; 7 levels; 13 levels; 17 levels

9. Rating plate:Yes (Beierbian Group brand or Customer brand)

10. Corrugated refrigeration panels: Yes ( Four sides of the transformer shell)

11. Parts:

1)Oil draining valve 2)Oil level indicator 3)Thermometer

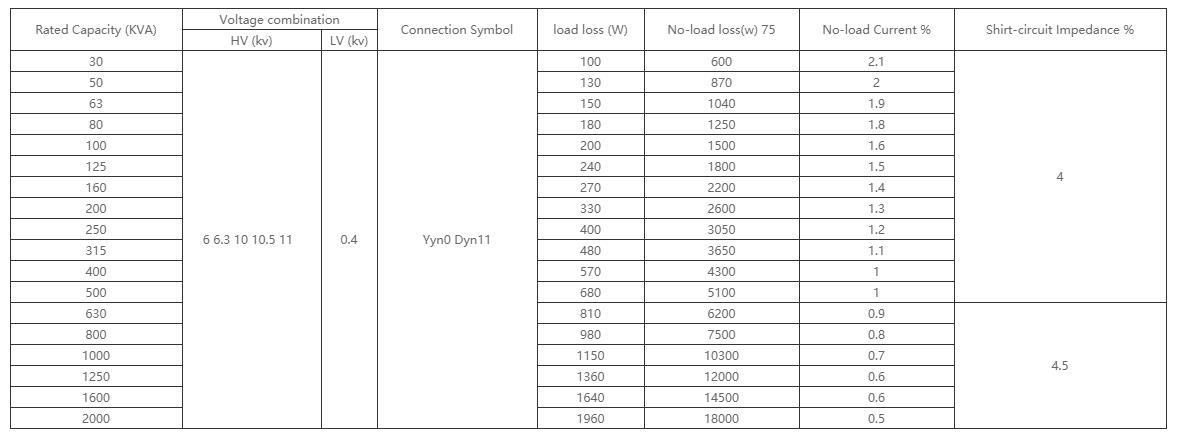

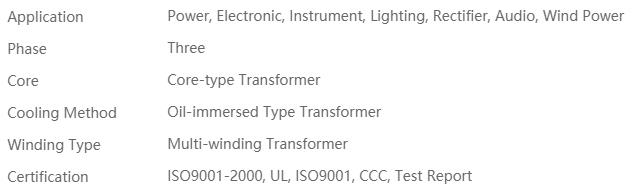

Technical data

Note: we can design and manufacture special transformer as customers' requirements.

Ordering Instruction:

1.product model;

2.rated capacity;

3.voltage range;

4.regulation range;

5.frequency;

6.connection symbol;

7. technical requirements for special transformer.

Ambient

Highest air temperature +40℃;

Lowest air temperature -45℃;(defines in detail when placing an order)

Transformer normal service condition

The height above sea level is below 1000m;

Ambient temperature:

Highest air temperature +40℃;

Highest daily average air temperature+30℃;

Highest annual average air temperature+20℃;

Lowest outdoor air temperature-25℃.
